Flexibles delineators – Deflex

Catalog 2020 – Vision Zero

Rectangular Rapid Flash Beacon – Model L

LED BLINKERS TRAFFIC SIGNS
As mentioned in the updated June 2018 SAFE TRANSFORMATION FOR EVERY PEDESTRIAN countermeasure technical sheet from the US Department of Transportation (FHA), RRFBs can REDUCE PEDESTRIAN CRASHES BY 47%. It also says that multiple lanes create challenges for pedestrian crossing at unsignaled locations. RRFBs can make crosswalks and/or pedestrians more visible at a marked crosswalk.

Rectangular rapid flash beacon RRFB Model L - LED electronic sign - Traffic Innovation
Icon of light and discrete system - Traffic innovation

DISCRETE, LIGHT AND THIN DESIGN

Icon of simple installation - Traffic Innovation

EASY INSTALLATION ON STANDARD POSTS

Icon of LED high intensity - Traffic Innovation

HIGH-INTENSITY LEDs

Statistics related to the rectangular rapid flash beacon RRFB Model L - LED electronic sign - Traffic Innovation

Activation Options

Icone de REPÈRES VISUELS

WIRELESS AND BATTERY-FREE (PIEZOELECTRIC) PUSH BUTTON (INCLUDED)

Icone de REPÈRES VISUELS

WIRELESS AND BATTERY-FREE (PIEZOELECTRIC) FOB (OPTION)

Icone de REPÈRES VISUELS

WIRELESS AND BATTERY-FREE (PIEZOELECTRIC) PUSH BUTTON POST (OPTION)

Icone de REPÈRES VISUELS

MOTION SENSOR (OPTION)

APPLICATIONS

Signalisation routière zone scolaire - Trafic Innovation

School Zone

The safety of our children is our top priority and drivers often need a reminder.

See the products
Villes intelligentes et sécurité routière - Trafic Innovation

Smart cities

We offer solutions for smart urban traffic management.

See the products
Sécurité passage pour piétons - Trafic Innovation

Crosswalks

Visibility and signage compliance are of the utmost priority at pedestrian crossings.

See the products
Canalisation routière - Trafic Innovation

Road Channelizing

Effective communication of road hazards is essential to improving safety and traffic flow. Road channelizing prevents accidents.

See the products
Sécurité de chantier et travaux routiers - Trafic Innovation

Work zone

We develop tools that increase safety for road workers and drivers.

See the products

TECHNOLOGIES

Wireless Communication

Electronic road sign activation with wireless buttons and remotes. Our wireless communication system is simple and easy to use.

Find out more

PRODUCT OPTIONS

Remote for crossing guard - Trafic Innovation

Remote for crossing guard #36436

Wireless remote with sign - Traffic Innovation

Wireless remote with sign #36227

Wireless remote on bollard - Traffic Innovation

Wireless remote on bollard #36266

Push button with cable - Traffic Innovation

Push button with cable

Pedestrian detector (-2 days of autonomy) - Traffic Innovation

Pedestrian detector (-2 days of autonomy) #36738

Solar panel - Traffic Innovation

Solar panel

Current conversion kit 120v to 12v IP67 with battery - Traffic Innovation

Current conversion kit 120v to 12v IP67 with battery #35990

2″ telespar post hardware #36286 - Traffic Innovation

P-270 for 2 inches Telespar post installation #37089

Solar panel adaptor, Telespar 2 inches - Traffic Innovation

Solar panel adaptor, Telespar 2 inches #33512

Additional cable for 2nd flasher #36739 - Traffic Innovation

Cable for 2nd beacon #36697

Communication fob wireless - Trafic Innovation

Communication fob wireless #36741

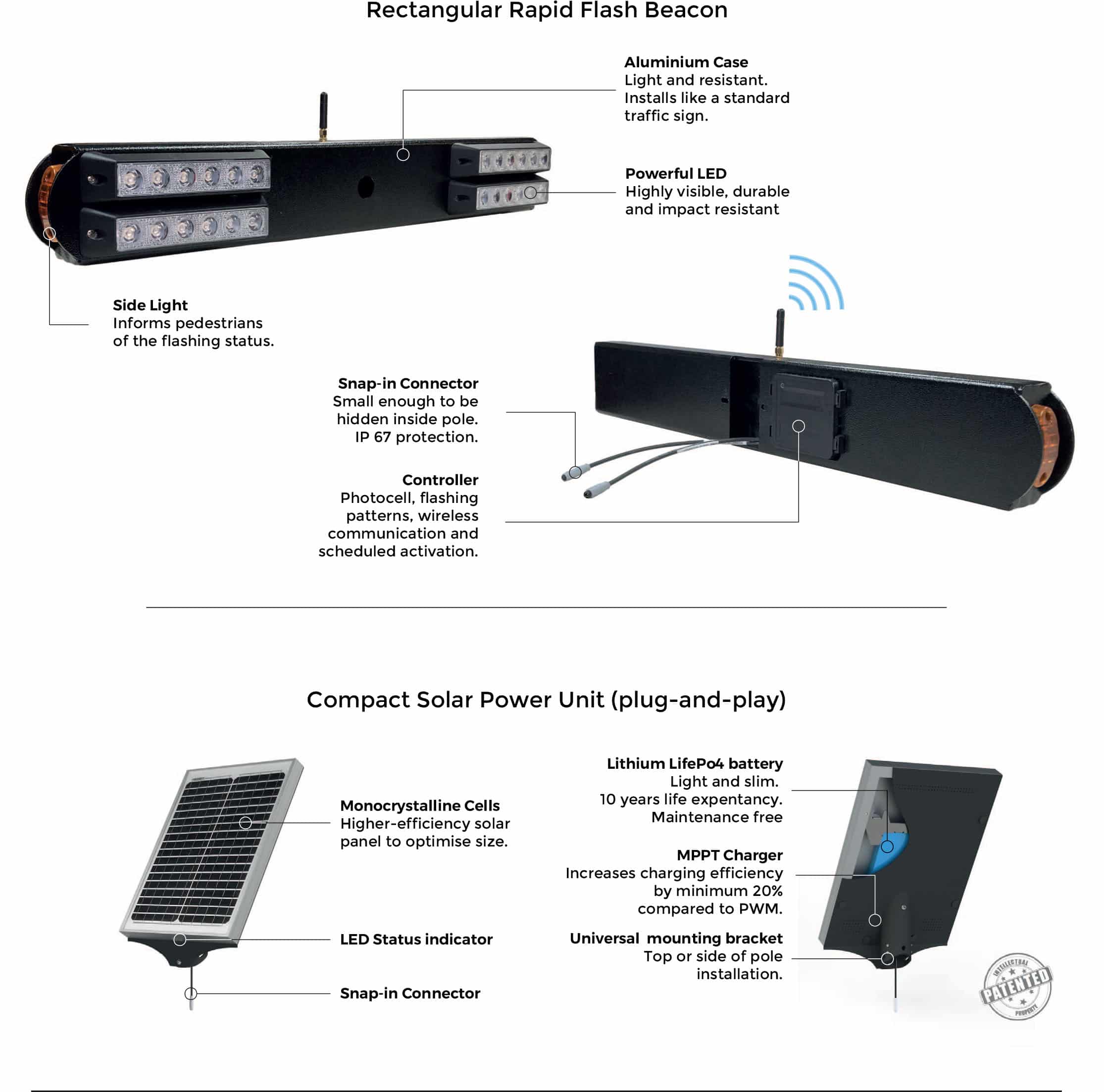

TECHNICAL SPECIFICATIONS OF THE MODEL L RRFB

Technical specifications of the rectangular rapid flash beacon RRFB Model L - LED electronic sign - Traffic Innovation

Solar Power Unit (All-in-one)

Monocrystaline Solar Panel: 30 W
LifePo4 Battery: 12.8V – 14Ah
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6ʺ, IP67
Operating Temperature: -40 to +74ºC (-40 to +165ºF)
Weight: 7.7 kg (17 lb)

Flashing Beacon

Flasher Size: 72 x 159 mm (3ʺ x 6.25ʺ)
Standard: SAE J595 class1
Color: Amber
Lens: UV-resistant clear polycarbonate
Life Expectancy: 100,000 hours
Visibility: More than 300 m (1000′)
Auto-Dimming: Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max Power @ 12 V: 15 W
Wireless Communication: Encrypted 902 MHz
Wireless Range: Up to 100m (300′) free field
Connector: 10 mm OD, Male, 6ʺ, IP67
Flash Patterns: WW+S, BLOCK or 2-5 (MUTCD)
Flash Rate: 60 per minute
Activation: On-demand
Default setting: WW+S, On-demand
Rectangular Housing: Aluminum Black Painted
Waterproof Rating: IP65
Operating Temperature: -40 to +50°C (-40 à +131°F)
Weight: 3.1 kg (6.75 lb)

Product NumberDescriptionBox : Dimenson – WeightHSS Code
Assembly Kit
#37744Single-Side Kit- Set of two (2) for ONTARIO crossing, 30 W solar power unit32ʺ x 18ʺ x 9ʺ – 40 lb8530.90
#37723Single-Side Kit- Set of two (2) for USA, Alberta, BC crossing, 30 W solar power unit32ʺ x 18ʺ x 9ʺ – 40 lb8530.90
#37746Double-Side Kit- Set of two (2) for ONTARIO crossing, 30 W solar power unit32ʺ x 18ʺ x 9ʺ – 49 lb8530.90
#37724Double-Side Kit- Set of two (2) for USA, Alberta, BC crossing, 30 W solar power unit32ʺ x 18ʺ x 9ʺ – 49 lb8530.90
Activation Options
#38129Software Kit for configuration and pairing (USB Dongle + Software)Included in kit boxN/A
#36463Wireless and battery-free Remote Control (software kit required)Included in kit boxN/A
#37173ONT- Wireless and battery-free Push Button on a Flexible Post (software kit required)Included in kit boxN/A
#36267Wireless and battery-free Push Button on a Flexible Post (software kit required)8ʺ x 8ʺ x 40ʺ – 8 lb8530.80
#36267USA- Wireless and battery-free Push Button on a Flexible Post (software kit required)8ʺ x 8ʺ x 40ʺ – 8 lb8530.80
#36886Motion Sensor for Activation (2-3/8’’ round pole requirKit box (+ 2 lb)N/A

Included with RRFB: Installation hardware for 2ʺ Telespar post, 2-3/8ʺ round pole, U-Post or street light pole. 760 mm (30ʺ) male/female extension for dual unit. Smart USB Dongle required to change configuration of the RRFB. Two (2) year Limited Warranty against defects in workmanship and materials.
