Solar Power Unit

Solar Power Units is all-in-one systems that include:

  • Photovoltaic sensor with aluminum frame
  • Powder-coated enclosure plate
  • Long lasting LifeP04 lithium battery
  • Smart MPPT charger to maximize charging
  • Battery status LED indicator
  • Universal mount for a quick setup
  • IP 67 connector cable

Lightweight and easy to install, it quickly connects to any of our ULTRA-THIN signs. This product has been developed specifically for road applications. It is compatible with most roadside traffic posts and meets all requirements specific to road products. Designed to operate year-round.

Solar Power Unit - Traffic Innovation
Icône installé sur des poteaux standards - Trafic Innovation

PLUG AND PLAY, NO CABINET, NO BATTERY TO INSTALL

GREEN ENERGY

10+ YEARS LIFE EXPECTANCY

DISCREET, LIGHT AND THIN DESIGN

BIG SAVINGS ON INSTALLATION & TIME

Solar Power Unit comparison - Traffic Innovation

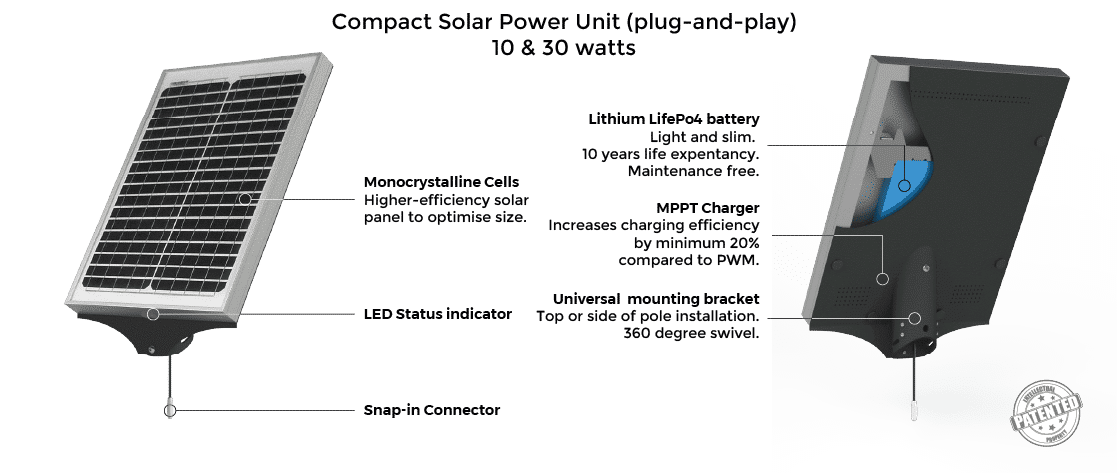

Solar Power Unit components 10 and 30 watts - Traffic Innovation

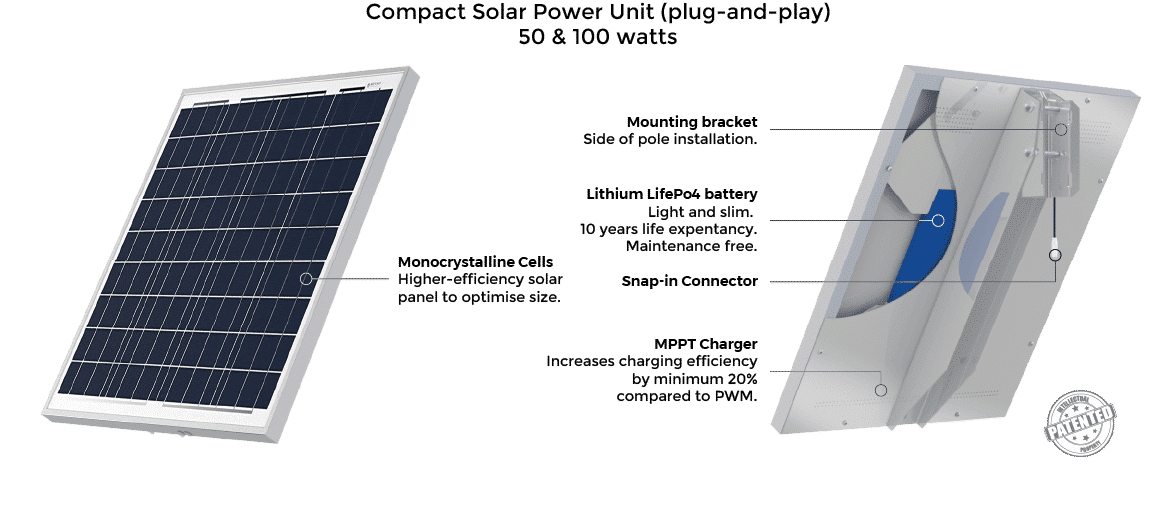

Solar Power Unit unit components 50 and 100 watts - Traffic Innovation

TECHNICAL SPECIFICATIONS OF THE SOLAR POWER UNIT

Technical specifications of the Solar Power Unit - Traffic Innovation
Technical specifications of the Solar Power Unit - Traffic Innovation

Solar Power Unit (10 W)

Solar Panel: 10 W – monocrystalline
Battery: 12.8 V – 9 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 4.5 kg (10 lb)
Width (A): 270 mm (10.63ʺ)
Height (B): 360 mm (14.17ʺ)

Solar Power Unit (30 W)

Solar Panel: 30 W – monocrystalline
Battery: 12.8 V – 14 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 7.7 kg (17 lb)
Width (A): 350 mm (13.80ʺ)
Height (B): 670 mm (26.38ʺ)

Solar Power Unit (50 W)

Solar Panel: 50 W – monocrystalline
Battery: 12.8 V – 27 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 11 kg (24 lb)
Width (A): 537 mm (21.13ʺ)
Height (B): 670 mm (26.38ʺ)

Solar Power Unit (100 watts)

Solar Panel: 100 W – monocrystalline
Battery: 12.8 V – 40 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 16 kg (36 lb)
Width (A): 537 mm (21.13ʺ)
Height (B): 1010 mm (39.75ʺ)

Product NumberDescriptionBox: Dimension – WeightHSS Code
#3623310 W Traffic Solar Power Unit (plug-and-play) with 9 Ah battery & MPPT charger12ʺ x 18ʺ x 6ʺ – 14 lb8530.80
#3598320 W Traffic Solar Power Unit (plug-and-play) with 14 Ah battery & MPPT charger12ʺ x 28ʺ x 6ʺ – 21 lb8530.80
#3591950 W Traffic Solar Power Unit (plug-and-play) with 27 Ah battery & MPPT charger24ʺ x 36ʺ x 6ʺ – 29 lb8530.80
#37239100 W Traffic Solar Power Unit (plug-and-play) with 40 Ah battery & MPPT charger48ʺ x 36ʺ x 6ʺ – 45 lb8530.80
Option
#359102 m female cable (for other use)Box + 2 lb8530.80
#363003 m extension male/femaleBox + 3 lb8530.80

Included with Solar Power Unit : Installation hardware for 2ʺ Telespar post, 60 mm (2.375ʺ) round pole, U-Post or street light pole. 760 (30ʺ) cable. 2 (two) year Limited Warranty against defects in workmanship and materials. 50 W & 100 W Solar power units must be installed on min. 100 mm (4ʺ) round pole (metal, wood, or concrete).
