DEFLEX Delineator Post for Lane Markings

YELLOW AND BLACK DEFLEX DELINEATOR TO SEPARATE LANES
The DEFLEX flexible delineator post for lane markings is capable of enduring repeated impacts while still channelizing traffic. Flexible, highly visible day or night from all angles, lightweight and resilient, the DEFLEX delineator is made of a treated polymer blend durable in all weather and can even retain its shape even after 200 impacts at medium speed. Available in a yellow shell with, depending on the road markings, yellow or white film.

DEFLEX delineator post for lane markings - DEFLEX Bollards and delineators - Traffic Innovation
Icon of highlights channelizing lanes - Traffic Innovation

HIGHLIGHTS CHANNELIZING LANES

Icon of prevents drivers from crossing over solid lines - Traffic Innovation

PREVENTS DRIVERS FROM CROSSING OVER SOLID LINES

Icon of improves visiblity in all weather conditions - Traffic Innovation

IMPROVES VISIBILITY IN ALL WEATHER CONDITIONS

Icon of increases safety in dangerous curves - Traffic Innovation

INCREASES SAFETY IN DANGEROUS CURVES

Icon of flexible polymer - Traffic Innovation

FLEXIBLE POLYMER

Icon of height - Traffic Innovation

1200 mm (8″) HIGH WITH FOUR (4) REFLECTIVE STRIPES

Icon of easy installation on multiple surfaces - Traffic Innovation

EASY INSTALLATION ON MULTIPLE SURFACES

Icon of best value on the market - Traffic Innovation

BEST VALUE ON THE MARKET

DEFLEX delineator post for lane markings on a road - DEFLEX Bollards and delineators - Traffic Innovation

FEATURES OF THE DEFLEX DELINEATOR POST FOR LANE MARKINGS

Installation of the DEFLEX delineator post for lane markings - DEFLEX Bollards and delineators - Traffic Innovation

ADVANTAGES OF OUR DEFLEX DELINEATOR POST FOR LANE MARKINGS



360° DELINEATOR

Visible and flexible from all angles.

MONOHULL

No mechanical pieces for easy maintenance. Less debris if damaged.

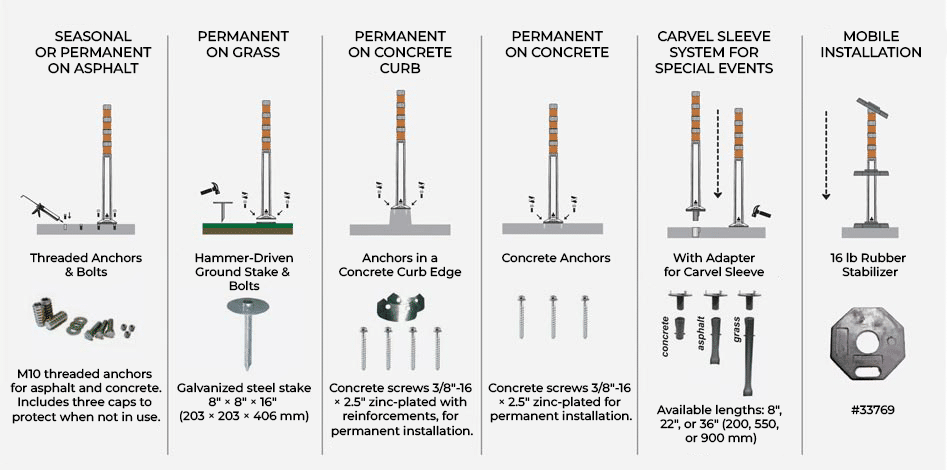

VERSATILE INSTALLATION

This delineator can be installed permanently (bolted-in or glued), moved with a 7.25 kg (16 lb) weight base or anchoring system for an easy-in, easy-out installation.

UV-PROTECTED DELINEATOR AND SOLID COLOR

A protective additive embedded in the polymer prevents color on the delineator from fading.

DEFLEX delineator post for lane markings on a boulevard - DEFLEX Bollards and delineators - Traffic Innovation

The DEFLEX delineator post is made of flexible polymer and regains its original shape after more than 200 impacts.

Animation of the DEFLEX delineator post for lane markings after an impact - DEFLEX Bollards and delineators - Traffic Innovation

PRODUCT OPTIONS

Rubber stabilizer 7.25kg / 16lb #33769 - Traffic Innovation

Rubber stabilizer 7.25kg / 16lb #33769

Standard installation kit #31094 - Traffic Innovation

Standard installation kit #35199

Adhesive mastic for temporary installation #MA8C-DEFLEX - Traffic Innovation

Adhesive mastic for temporary installation #MA8C-DEFLEX

K-style sleeve anchor adapter #BS114-K - Traffic Innovation

K-style sleeve anchor adapter #BS114-K

Sleeve anchor adapter #BS114- Traffic Innovation

Sleeve anchor adapter #BS114

TECHNICAL SPECIFICATIONS OF THE

DEFLEX DELINEATOR POST FOR LANE MARKINGS

Technical specifications of the DEFLEX delineator post for lane markings - DEFLEX Bollards and delineators - Traffic Innovation

MATERIALS

Delineator: Flexible Polymer with anti-UV
Sheeting: Diamond grade “prismatic”, type IV 90 mm (3.5″)

FEATURES

Proven product for over five (5) years in harsh weather conditions from -20 to +35°C (-4 to +95°F).

PERFORMANCE

360° of flexibility and visibility.
The Deflex delineator withstands 200 impacts at 70 km/h (45 mph) and regains its original shape, even after being crushed by the wheels of heavy trucks.

CERTIFICATIONS

MTQ T-RV-10
GUQ-1036

STANDARD

NCHRP-350

COMPONENTS

Molded-in and non-detachable flexible cap.
Four (4) embedded stripe sections protected from damage.
3M prismatic grade (type IV) reflective sheeting, flexible and visible on 360°.
Many colors available, pigment integrated into the polymer material.

Product Number Description Dimensions – Weight HSS Code
#33001 Yellow Flexible delineator with four (4) Yellow Diamond Grade Reflective Bands Pallet 100 units : 44 x 50 x 80 in – 450 lbs 3926.90
#30818 Yellow Flexible delineator with four (4) White Diamond Grade Reflective Bands Pallet 100 units : 44 x 50 x 80 in – 450 lbs 3926.90
#33853 White Flexible delineator with four (4) Yellow Diamond Grade Reflective Bands Pallet 100 units : 44 x 50 x 80 in – 450 lbs 3926.90
#33391 Black Flexible delineator with four (4) Orange Fluo Diamond Grade Reflective Bands Pallet 100 units : 44 x 50 x 80 in – 450 lbs 3926.90
Options
#33769 Hexagonal rubber base Pallet 50 units : 42 x 46 x 26 in – 1100 lbs 4017.00
#35199 Deflex ASPHALT Bolt-In Installation Kit Box 50 units : 11 x 17 x 4 in – 33 lbs N/A
#32410 Adhesive Mastic 8″ square c/w bolts & transfer plate Box 50 units : 11 x 17 x 8 in – 75 lbs N/A
#35543 BS114-K Adapter Box 50 units : 42 x 46 x 16 in – 225 lbs N/A
#33069 BS-114, Sleeve Anchor Adapter Box 50 units : 42 x 46 x 16 in – 225 lbs N/A

Included with kit: Two (2) year Limited Warranty againts defects in workmanship and materials.

APPLICATIONS

Road channelizing - Traffic Innovation

Road Channelizing

Effective communication of road hazards is essential to improving safety and traffic flow. Road channelizing prevents accidents.

See the products
Bike path security - Traffic Innovation

Bike Lanes

We encourage bicycle use by providing solutions that increase road safety for the more vulnerable.

See the products

TECHNOLOGIES

Bollards and delineators - Traffic Innovation

Flexible Delineator

Flexible road delineators that maximize safety for all road users, available in several colors.

Find out more
