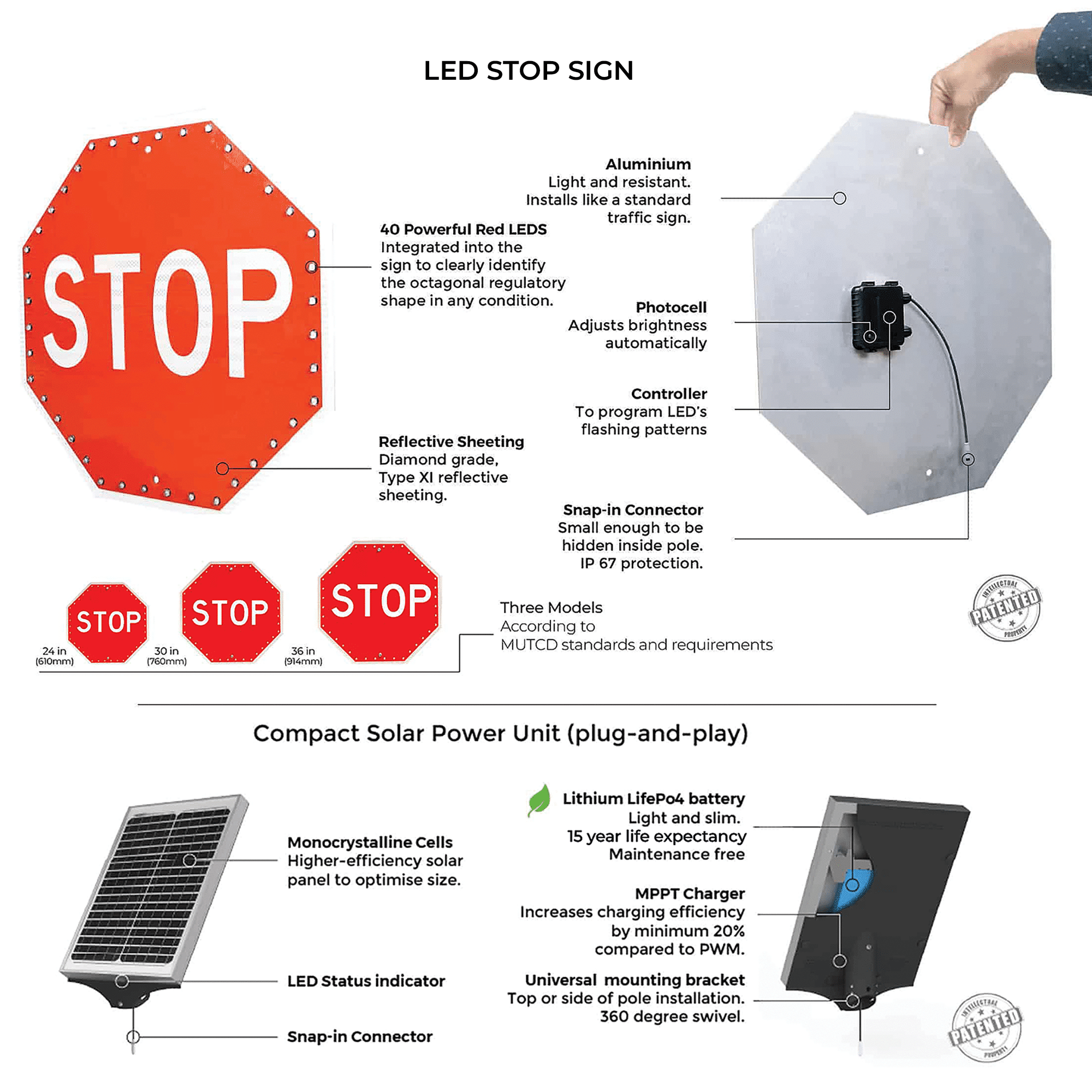

Thin-Stop Thin LED Stop Sign
When approaching the stop line, the bright LED STOP sign immediately draws drivers’ attention to the sign by emphasizing the octagonal contour (a universally recognized shape) using integrated 24/7 flashing LEDs. With its solar panel and batteries, the LED STOP sign is autonomous for a period of at least three (3) days without sunlight, even in winter. The LED STOP is designed to retrofit and be installed on all types of poles.
Why choose the luminous LED stop sign?
REINFORCES THE SIGN IN CRITICAL ZONES
TWO (2) POWER SOURCES AVAILABLE
INCREASES ROAD USER SAFETY
REINFORCES THE SIGN IN CRITICAL ZONES
Night only (option)
Technical specifications of the solar LED stop sign
Solar Power Unit (All-in-one)
Monocrystaline Solar Panel: 10 W
LifePo4 Battery: 12.8V – 9Ah
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6″, IP67
Operating Temperature: -40 to +74°C (-40 to + 165°F)
Weight: 4.5 kg (10 lb)
| (A) | (B) | (C) | Thichness | Weight |
|---|---|---|---|---|
| 24″ (610 mm) | 1.8″ (45 mm) | 8’’ (203 mm) | 8’’ (203 mm) | 2 kg (4 lb) |
| 30″ (760 mm) | 2.3″ (57 mm) | 10’’ (254 mm) | .125″ (3 mm) | 5 kg (10 lb) |
LED Stop Sign
Standard: MUTCD & TAC
Color: Red 626 nm (4000K)
Led Angularity: 30 degrees
Life Expectancy: 100,000 hrs
Luminosity: 100 cd day – 30 cd night
Auto-Dimming: Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max. Power @ 12 V: 8 W
Connector: 10 mm OD, Male, 6″, IP67
Flash Patterns: 0.1 – 0.2 – 0.5 sec or Tri-Flash
Flash Rate: 60 per minute
Activation: 24/7, night only, on-demand
Default Setting: 0.1 sec, 24/7
Back Plate: Aluminum 5052-H38
Reflective Sheeting (Yellow): 3M™ Diamond grade Type XI
Lens: UV-resistant transparent polycarbonate
Waterproof Rating: IP65
Operating Temperature: -40 à +50°C (-40 to +131°F)
| Product Number | Description | Box : Dimenson – Weight | HSS Code |
|---|---|---|---|
| Assembly Kit | |||
| #37531 | 24″ (610 mm) Thin Led Stop Sign, 10 W solar power unit | 32 x 32 x 8 in – 30 lbs | 8530.90 |
| #37803 | 24″ (610 mm) Thin Led Stop Sign, AC/DC power converter | 32 x 32 x 8 in – 30 lbs | 8530.90 |
| #37532 | 30″ (760 mm) Thin Led Stop Sign, 10 W solar power unit | 32 x 32 x 8 in – 33 lbs | 8530.90 |
| #37806 | 30″ (610 mm) Thin Led Stop Sign, AC/DC power converter | 32 x 32 x 8 in – 33 lbs | 8530.90 |
Included with Assembly Kit : Installation hardware for 2″ Telespar post, 2-3/8″ round post, 4″+ round post. Two (2) years Limited Warranty against defects in workmanship and materials. Smart USB Dongle required to change configuration of the stop sign.
