P-150-8 Winter LED Parking Sign

REGULATED LED PARKING SIGN
Our electronic signage system for winter parking, also known as P-150-8 Ultra-thin smart sign, is made for seasonal and winter parking management. Thanks to wireless communication and activation, your operators will be able to efficiently manage your signage, which will greatly reduce maintenance operations. Quickly and clearly informing citizens is a priority and the implementation of a smart system like the P-150-8 Ultra-thin provides short-term savings on management costs as well as staff mobilization, which are important factors in envisioning a smart city.

Highy visible LED lights

Multiple configurations

Ergonomic and ultra-light 1,36 kg (3 lb)

Powered by solar panel

Quick and easy installation

Wireless activation

LED winter electronic parking sign - Parking management sign - Traffic Innovation

Why choose the P-150-8 winter LED parking sign?

Installation options

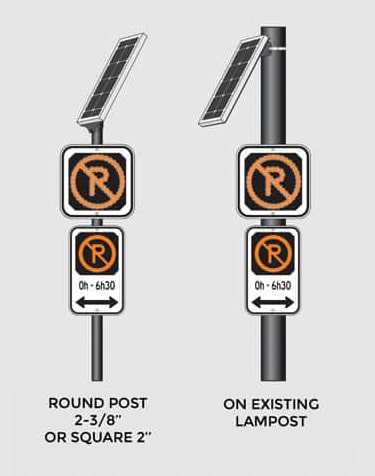

Types of installation for the P-150-8 winter LED electronic sign - Parking management sign - Traffic Innovation

Flashing panel of the P-150-8 LED electronic sign - Parking management sign - Traffic Innovation

P-150-8 LED parking sign operation modes - Parking management sign - Traffic Innovation

Module intelligent intégré - Gestion de stationnement et signalisation électronique DEL - Trafic Innovation

Integrated smart module

Integrated programmable module, compatible with external contacts (dry contacts).

Power options for the P-150-8 winter LED electronic sign - Parking management sign - Traffic Innovation

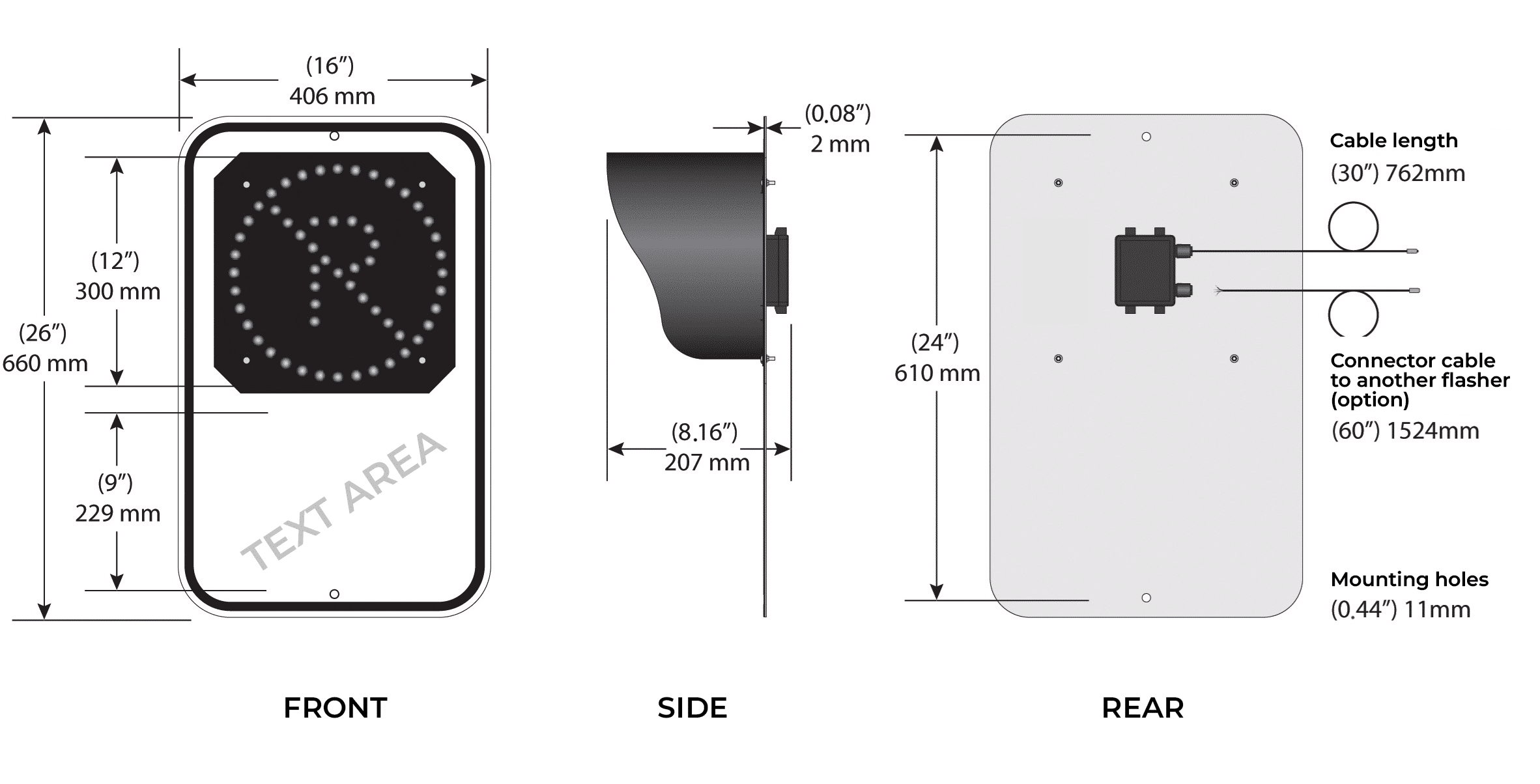

Technical specifications of the P-150-8 WINTER LED PARKING SIGN

ELECTRICAL COMPONENTS

Beacon Size: 200 mm (8″) or 300 mm (12″)
Standard: MTQ – Book V
LEDs Life Expectancy: 50,000 hrs
Luminosity:
8″ = 11 cd Day – 44 cd Night
12″ = 170 cd Day – 70 cd Night
Color: Orange 605 nm Wavelength
Power Consumption @ 12 V: 1.44 W Day – 0.5 W Night (0.2 sec Flash)
Controller: Built-in
Controller Input Voltage: 10.8 to 15 VDC
Connector: Snap-in, Overmolded IP67 Connector, 10 mm OD
Flash Patterns: MUTCD (0.5 sec) or Solar Panel Mode (0.2 sec)
Operation Modes: 24 hrs, Night Only or Optional Activation
Operating Temperature: -40 to +55°C (-40 to +131°F)

SOLAR Power unit

Solar Panel: 30 W
Battery: 12.8 V – 27 Ah – Lithium LifePo4
Solar Charger: 10 A – MPPT – IP67
Operating Temperature: -40 to +74ºC (-40 to + 165ºF)
Environmental Protection: IP54
Size: 349 x 670 mm (13-3/4′ x 26-3/8″)
Weight: 7.7 kg (17 lb)

Product number	Description	Box : Dimension – Weight	HSS Code
Assembly Kit
#38267	12″ x 12″ No Parking Flashing Beacon 8″ (200mm), 30W solar power unit	18 x 32 x 14 in – 36 lbs	8530.90
#38271	16″ x 16″ No Parking Flashing Beacon 12″ (300mm), 30W solar power unit	18 x 32 x 14 in – 36 lbs	8530.90
#38389	12″ x 12″ No Parking Flashing Beacon 8″ (200mm) with text zone, 30W solar power unit	18 x 32 x 14 in – 36 lbs	8530.90
#38232	16″ x 16″ No Parking Flashing Beacon 12″ (300mm) with text zone, 30W solar power unit	18 x 32 x 14 in – 36 lbs	8530.90
#38888	12″ x 12″ No Parking Flashing Beacon 8″ (200mm), AC/DC power converter	18 x 32 x 14 in – 36 lbs	8530.90
#38889	16″ x 16″ No Parking Flashing Beacon 12″ (300mm), AC/DC power converter	18 x 32 x 14 in – 36 lbs	8530.90
#38890	12″ x 12″ No Parking Flashing Beacon 8″ (200mm) with text zone, AC/DC power converter	18 x 32 x 14 in – 36 lbs	8530.90
#38891	16″ x 16″ No Parking Flashing Beacon 12″ (300mm) with text zone, AC/DC power converter	18 x 32 x 14 in – 36 lbs	8530.90
Activation Options
#38129	Software Kit for Schedule, configuration and pairing (USB Dongle + Software)	Included in kit box	N/A
#36463	Wireless and battery free Remote Control (software kit required)	Included in kit box	N/A

Included with beacon : Installation hardware for 2’’ Telespar post, 2-3/8‘’ round pole, U-Post or streetlight pole. 2 years Limited Warranty againts defects in workmanship and materials.
