Thin-8DFB 8″ Thin Dual Flashing Beacon
Driver inattention is the number one cause of road accidents in North America. The school zone flashing beacon, with its ultra-bright LEDs, captures drivers attention at crosswalks, school zones and critical traffic intersections. The 8’’ Dual Flashing Beacon also serve an educational purpose, reinforcing existing road signs, with customizable flashing patterns!
THIN & LIGHT DISCREET DESIGN
QUICK & EASY INSTALLATION
HIGH VISIBILITY LED LIGHTS
FEATURES OF THE 8ʺ THIN DUAL FLASHING BEACON
Aluminum
Light and resistant. Installs like a standard traffic sign.
Powerful LED
Integrated into the sign and protected by polycarbonate lens.
Controller
Photocell, flashing patterns, wireless communication and scheduled activation.
Reflective
High intensity yellow sheeting or black backgroung.
Snap-in Connector
Small enough to be hidden inside pole.
IP 67 protection.
SOLAR POWER UNIT (ALL-IN-ONE & PLUG-AND-PLAY)
Monocrystalline Cells
Higher-efficiency solar panel to optimize size.
Lithium LifePo4 battery
Light and slim. 10-year life expectancy. Maintenance free.
MPPT Charger
Increases charging efficiency by at least 20% compared to PWM.
Universal Mounting Bracket
Top or side of pole installation.
LED Status Indicator
Snap-in Connector
24/7 OPERATION (INCLUDED)
SCHEDULE ACTIVATION (SOFTWARE KIT REQUIRED)
WIRELESS AND BATTERY-FREE (PIEZOELECTRIC) PUSH BUTTON (OPTION)
RADAR ACTIVATION (OPTION)

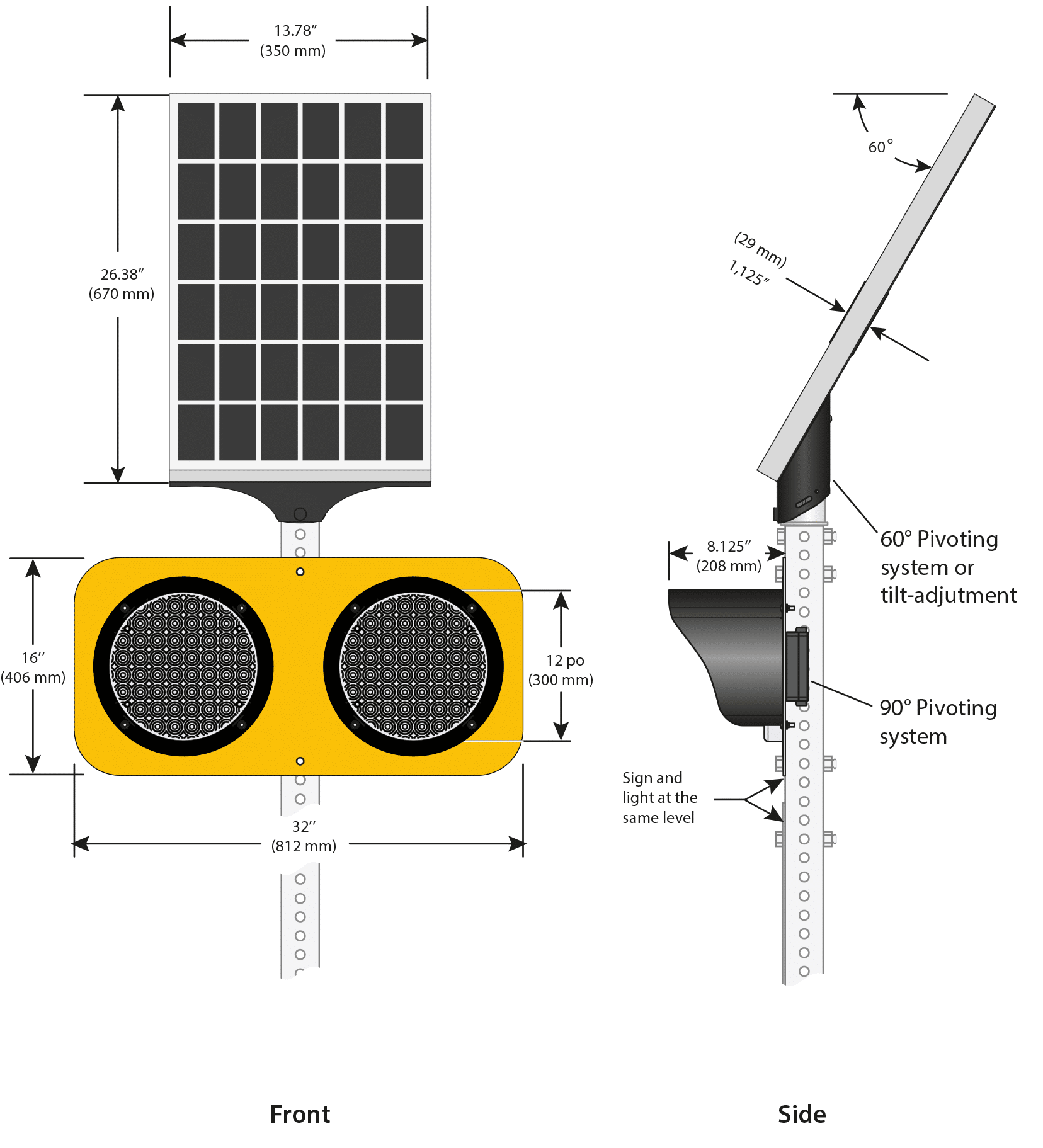

TEFCCHNICAL SPECIFICATIONS OF THE
SCHOOL ZONE FLASHING BEACON
Dual Flashing Beacon Sign (12x24)
Beacon size: 200 mm (8ʺ)
Standard: ITE VTCSH-STD 2005, EN 12352 L8M Class
Color: Amber 590 nm or Red 626 nm
Life expectancy: 100,000 hours
Luminous Intensity: 650 cd day – 200 cd night
Auto-dimming : Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max Power @ 12 V: 16 W
Wireless Communication: Encrypted 902 MHz, up to 100 m (300ʹ)
Connector: 10mm OD, Male, 6ʺ, IP67
Flash Patterns: 0.1 – 0.2 – 0.5 sec, tri-flash or WW+S
Flash Rate: 60 per minute
Activation: 24/7, night only, calendar, on-demand
Default setting: 0.1 sec, 24/7
Back Plate: Aluminum 5052-H38, 2 mm (.08ʺ)
Sheeting (Black): 3M™ Scotchcal™
Reflective Sheeting (Yellow): 3M™ Prismatic High intensity Type IV
Visor: Aluminum, black painted textured (yellow exterior also offered)
Lens: UV-resistant transparent polycarbonate
Waterproof Rating: IP65
Operating Temperature: -40 to +50°C (-40 to +131°F)
Weight: 3.7 kg (8 lb)
Solar Power Unit (All-in-one)
Solar Panel: 30 W Monocrystalline
Battery: 12.8 V – 14 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6ʺ, IP67
Operating Temperature: -40 to +74ºC (-40 to +165ºF)
Weight: 7.7 kg (17 lb)
| Product Number | Description | Box : Dimension – Weight | HSS Code |
|---|---|---|---|
| Assembly Kit | |||
| #37742 | Dual Flashing Beacon, amber, black background, 30 W solar power unit | 18 x 32 x 14 in – 28 lb | 8530.90 |
| #37741 | Dual Flashing Beacon, amber, yellow background, 30 W solar power unit | 18 x 32 x 14 in – 28 lb | 8530.90 |
| #38884 | Dual Flashing Beacon, red, black background, 30W solar power unit | 18 x 32 x 14 in – 28 lb | 8530.90 |
| Activation Options | |||
| #38129 | Software Kit for Schedule, configuration and pairing (USB Dongle + Software) | Included in kit box | N/A |
| #36463 | Wireless and battery-free Remote Control | Included in kit box | N/A |
| #36287 | Wireless and battery free Push Button | Included in kit box | N/A |
| #36267 | Wireless and battery free Push Button on a Flexible Post | 8 x 8 x 40 in – 8 lb | 8530.80 |
| #36900 | Vehicle sensor activation for 2-3/8” pole | Kit box (+ 2 lb) | N/A |
Included in kit : Installation hardware for 2’’ Telespar post, 2-3/8‘’ round pole, U-Post or streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
