Solar Power Unit

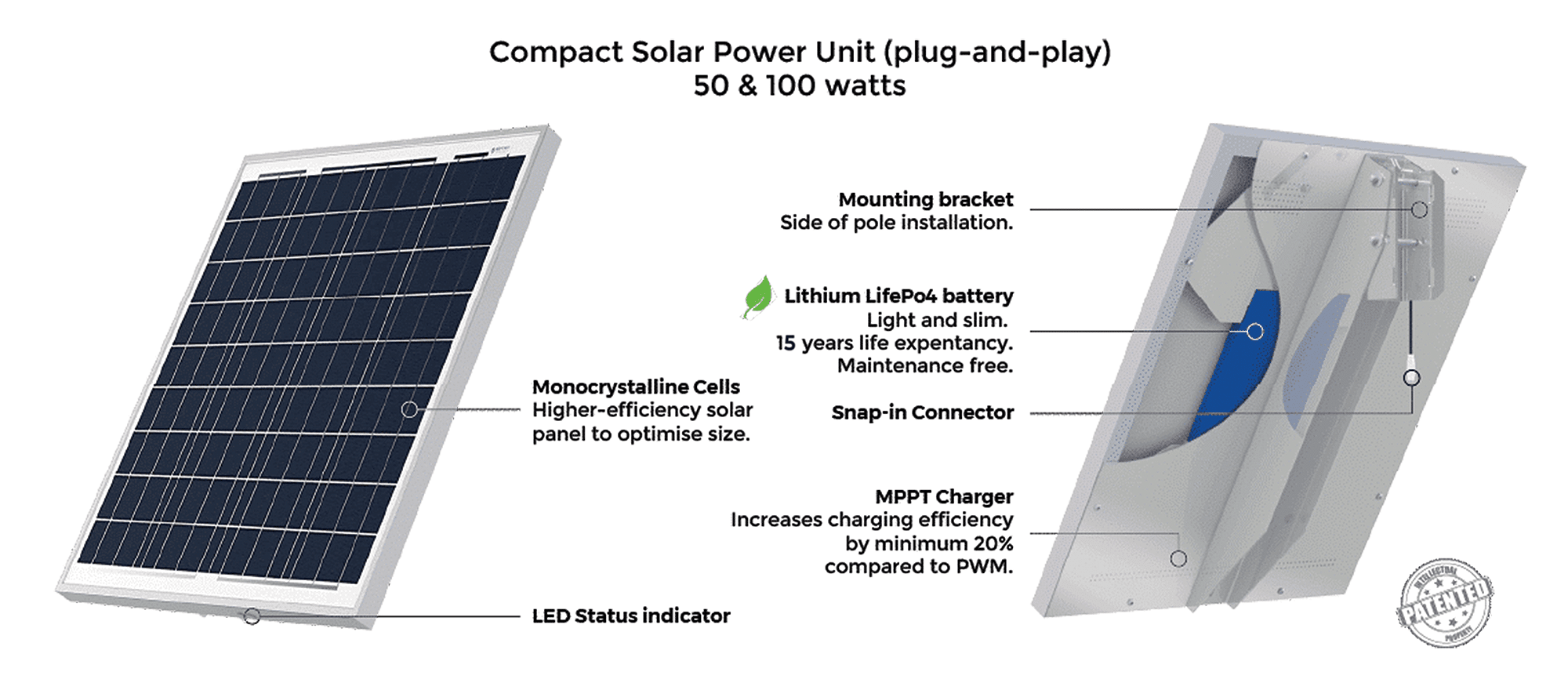

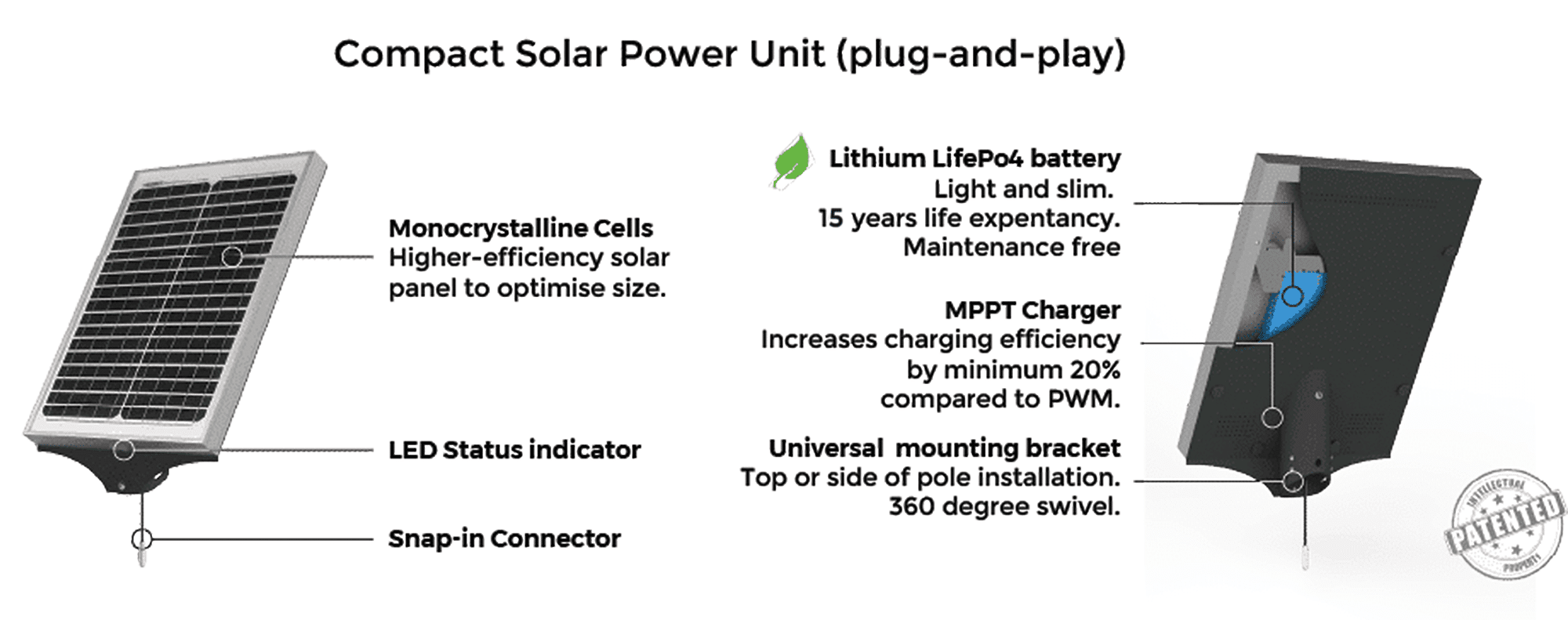

Solar Power Units is all-in-one systems that include:
- – Photovoltaic sensor with aluminum frame
- – Powder-coated enclosure plate
- – Long lasting LifeP04 lithium battery
- – Smart MPPT charger to maximize charging
- – Battery status LED indicator
- – Universal mount for a quick setup
- – IP 67 connector cable

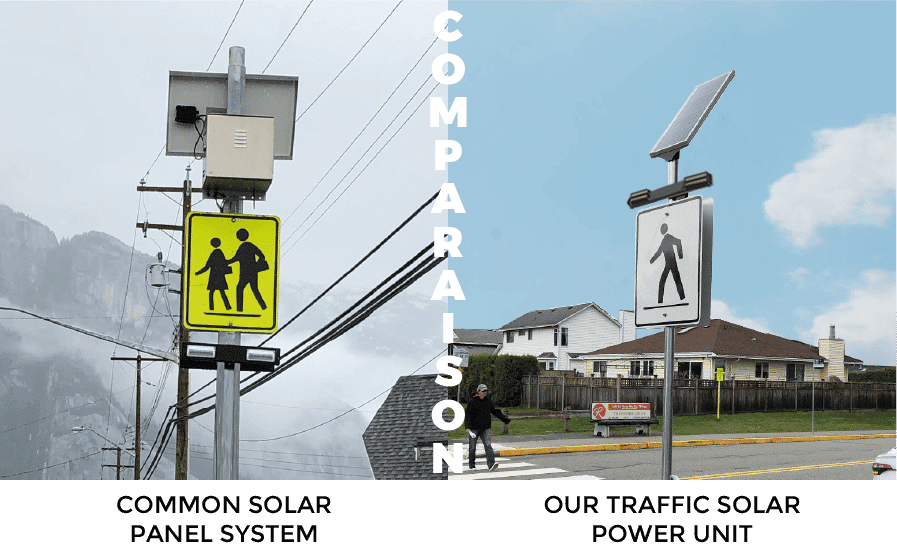

Lightweight and easy to install, it quickly connects to any of our ULTRA-THIN signs. This product has been developed specifically for road applications. It is compatible with most roadside traffic posts and meets all requirements specific to road products. Designed to operate year-round.

BIG SAVINGS ON INSTALLATION & TIME




TECHNICAL SPECIFICATIONS OF THE SOLAR POWER UNIT


Solar Power Unit (10 W)
Solar Panel: 10 W – monocrystalline
Battery: 12.8 V – 9 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 4.5 kg (10 lb)
Width (A): 270 mm (10.63ʺ)
Height (B): 360 mm (14.17ʺ)
Solar Power Unit (30 W)
Solar Panel: 30 W – monocrystalline
Battery: 12.8 V – 14 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 7.7 kg (17 lb)
Width (A): 350 mm (13.80ʺ)
Height (B): 670 mm (26.38ʺ)
Solar Power Unit (50 W)
Solar Panel: 50 W – monocrystalline
Battery: 12.8 V – 27 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 11 kg (24 lb)
Width (A): 537 mm (21.13ʺ)
Height (B): 670 mm (26.38ʺ)
Solar Power Unit (100 watts)
Solar Panel: 100 W – monocrystalline
Battery: 12.8 V – 40 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 16 kg (36 lb)
Width (A): 537 mm (21.13ʺ)
Height (B): 1010 mm (39.75ʺ)
Product Number | Description | Box: Dimension – Weight | HSS Code |
---|---|---|---|
#36233 | 10 W Traffic Solar Power Unit (plug-and-play) with 9 Ah battery & MPPT charger | 12ʺ x 18ʺ x 6ʺ – 14 lb | 8530.80 |
#35983 | 20 W Traffic Solar Power Unit (plug-and-play) with 14 Ah battery & MPPT charger | 12ʺ x 28ʺ x 6ʺ – 21 lb | 8530.80 |
#35919 | 50 W Traffic Solar Power Unit (plug-and-play) with 27 Ah battery & MPPT charger | 24ʺ x 36ʺ x 6ʺ – 29 lb | 8530.80 |
#37239 | 100 W Traffic Solar Power Unit (plug-and-play) with 40 Ah battery & MPPT charger | 48ʺ x 36ʺ x 6ʺ – 45 lb | 8530.80 |
Option | |||
#35910 | 2 m female cable (for other use) | Box + 2 lb | 8530.80 |
#36300 | 3 m extension male/female | Box + 3 lb | 8530.80 |
Included with Solar Power Unit : Installation hardware for 2ʺ Telespar post, 60 mm (2.375ʺ) round pole, U-Post or street light pole. 760 (30ʺ) cable. 2 (two) year Limited Warranty against defects in workmanship and materials. 50 W & 100 W Solar power units must be installed on min. 100 mm (4ʺ) round pole (metal, wood, or concrete).
