Kamelion PLVV Speed Display Sign

VARIABLE SPEED DISPLAY
The Kamelion-PLVV speed display is a variable speed limit sign that changes according to a programmable schedule. The appropriate maximum speed limit can be selected according to a schedule (daily, weekly and annually). The KAM-PLVV is equipped with flashing beacons which activate when the lowest speed is displayed. It is an excellent school zone safety tool to draw attention of the speed limit during school hours

Kamelion PLVV Speed Display Sign - Smart sign - Traffic Innovation
icon of pedagogical tool - Traffic Innovation

PEDAGOGICAL TOOL

icon of full matrix - Traffic Innovation

FULL MATRIX

Icon of reduces speeds - Traffic Innovation

REDUCES SPEEDS

Kamelion PLVV Speed Display Sign - Variable message sign - Traffic Innovation

FEATURES OF THE KAMELION PLVV SPEED DISPLAY SIGN

Variable speed limit sign

FULL MATRIX DISPLAY

Can display all speed limits from 10 to 90 km/h (6 to 55 mph), respecting standardized drawings.

POLYETHYLENE HOUSING

Lightweight for easy installation and resistant against shocks and vandalism.

POLYCARBONATE ANTI-GLARE WINDOW

Improves visibility and impact-resistant.

INTERNAL CALENDAR

Allows you to alternate the speed according to the hour, day or month. Programmable via Bluetooth.

PHOTOCELL

Adjusts brightness automatically.

FLASHING BEACONS

Activates when the lowest speed is displayed. Light intensity is adjusted with ambient lighting.

ALUMINUM

Light and resistant. Installs like a standard traffic sign.

Message en alternance sur l'afficheur de vitesse Kamélion-PLVV - Afficheurs de vitesse et PMV - Trafic Innovation
Speed display sign Kamelion PLVV installed on a post - Speed Displays and VMS - Traffic Innovation

120-240 VAC Electric cabinet

ELECTRICAL COMPONENTS

120-240 VAC converter and battery charger.

CABINET

IP66 metal cabinet with door and hinge.

12V AGM BATTERY

Provides electricity when the street light power is off.

STRAPPING BRACES

Cabinet can be easily installed on a lamp pole.

Kamelion PLVV Speed Display Sign - Variable Speed Limit Sign - Traffic Innovation
Kamelion PLVV Speed Display Sign - Smart city - Traffic Innovation

Kamelion Software

Softwares are provided free of charge with the product. These softwares allow you to:

– Create messages or pictograms
– Create an operating schedule
– Adjust the light intensity parameters

Communication with the PLVV is hardwired or by Bluetooth.

TECHNICAL SPECIFICATIONS OF THE
KAMELION PLVV SPEED DISPLAY SIGN

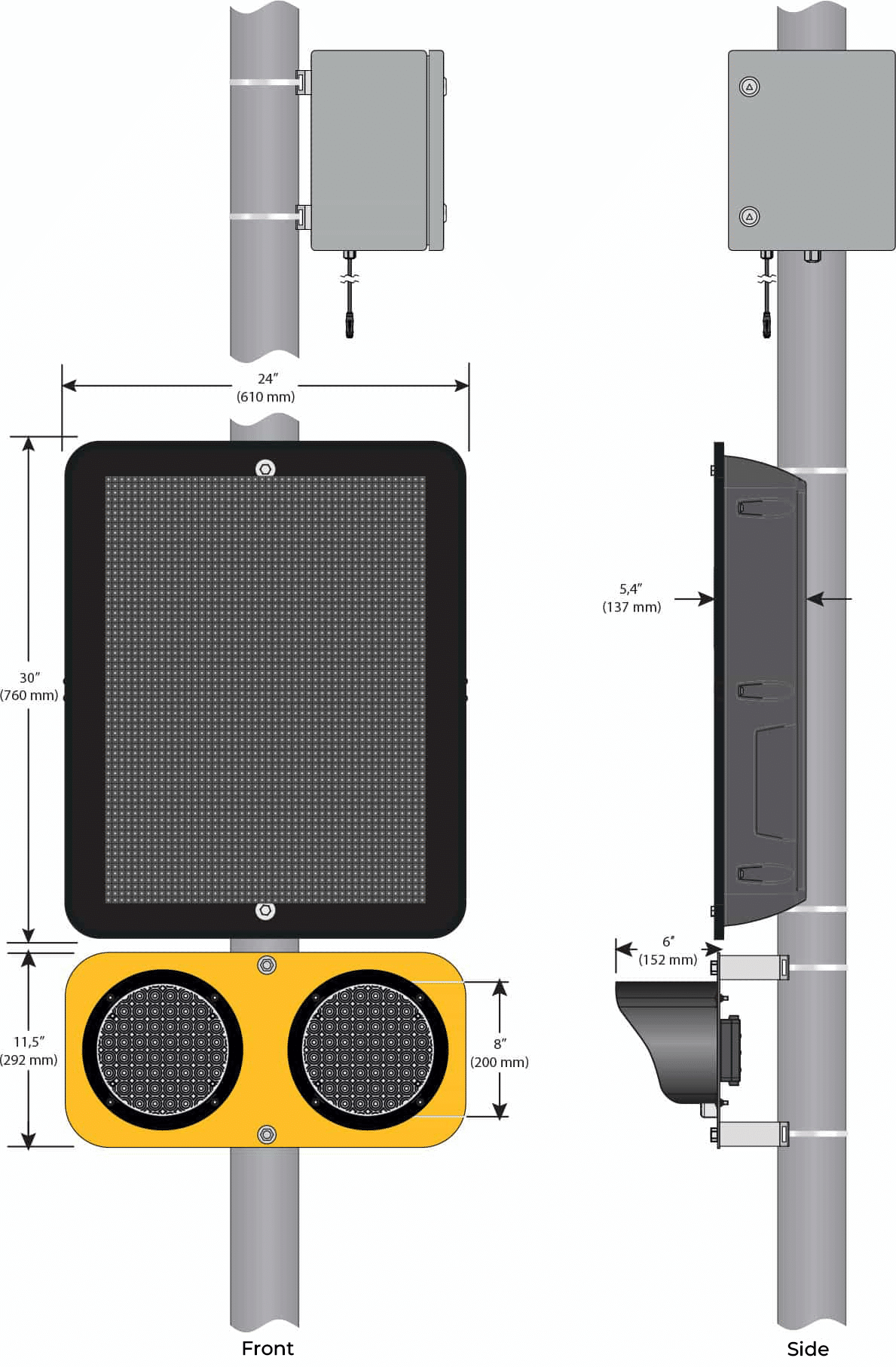

Technical specifications of the speed display sign Kamelion PLVV - Traffic Innovation

VARIABLE SPEED LIMIT SIGN

Housing: UV-treated polyethylene (PE)
Window: Anti-glare polycarbonate 5 mm (.188ʺ)
Voltage in: 10.8 to 15 VDC
Max Power @ 12 V: 188 W
Display Size: 640 x 480 mm (25ʺ x 19ʺ)
Resolution : 64 x 48 pixels
LED Angularity: 50° x 100°
Max height: 80 mm (3.2ʺ)
Digits height: 370 mm (14.6ʺ)
LED colors: White
Visibility: More than 200 m (656ʹ)
Auto-Dimming: Variable based on ambient light
Connector: 10mm OD, Male, 36ʺ, IP67
Communication: Bluetooth, 50 m (160ʹ) range
Waterproof Rating: IP54
Operating Temperature: -40 to +74°C (-40 to +165°F)
Weight: 12 kg (26 lb)

120-240 VAC ELECTRIC CABINET

Voltage in: 120-240 VAC
Battery: AGM /12V – 38Ah
Battery Charger: PWM, 5 A, IP67
Connector: 10 mm OD, Female, 6ʺ, IP67
Cabinet: Steel Gray Painted, IP66
Cabinet Size: 300 x 250 x 200 mm (11.8ʺ x 9.8ʺ x 7.8ʺ)
Operating Temperature: -40 to +74°C (-40 to +165°F)
Weight: 19 kg (42 lb)

FLASHING BEACON

Beacon Size: 200 mm (8ʺ)
Standard: ITE VTCSH-STD 2005
Color: Amber 590 nm
Auto-Dimming : Variable based on ambient light
Voltage in: 10.8 to 15 VDC
Max Power @ 12 V: 8 W
Communication: Wireless, 902 MHz
Connector: 10 mm OD, Male, 6ʺ, IP67
Flashing Pattern: 0.5 sec, 60 per minute
Activation: When lowest speed is displayed
Back Plate: Aluminum 5052-H38, 3 mm (0,125ʺ)
Reflective Sheeting: Type IV 3MTM High Intensity
Visor: Aluminum, black painted
Lens: Clear polycarbonate with anti-glare
Waterproof Rating: IP65
Operating Temperature: -40 to +50°C (-40 à +131°F)
Weight: 3.7 kg (8 lb)

Product number Description Box : Dimension – Weight HSS Code
Assembly Kit
#38092 Variable Speed Limit Sign

37 x 28 x 11 po – 35 lb (KAM-PLVV)

12 x 24 x 8 po – 10 lb (Double flashing beacon)

12 x 16 x 12 po – 40 lb (AC/DC Power Converter)

8530.90

Included with beacon : Installation hardware for 4’’ round post. 2 years Limited Warranty againts defects in workmanship and materials.

Included with system: Installation hardware for 100+ mm (4″+) round posts. 760 mm (30″) cable. Smart USB key to modify the flashing beacon configuration. Two (2) year Limited Warranty against defects in workmanship and materials.
