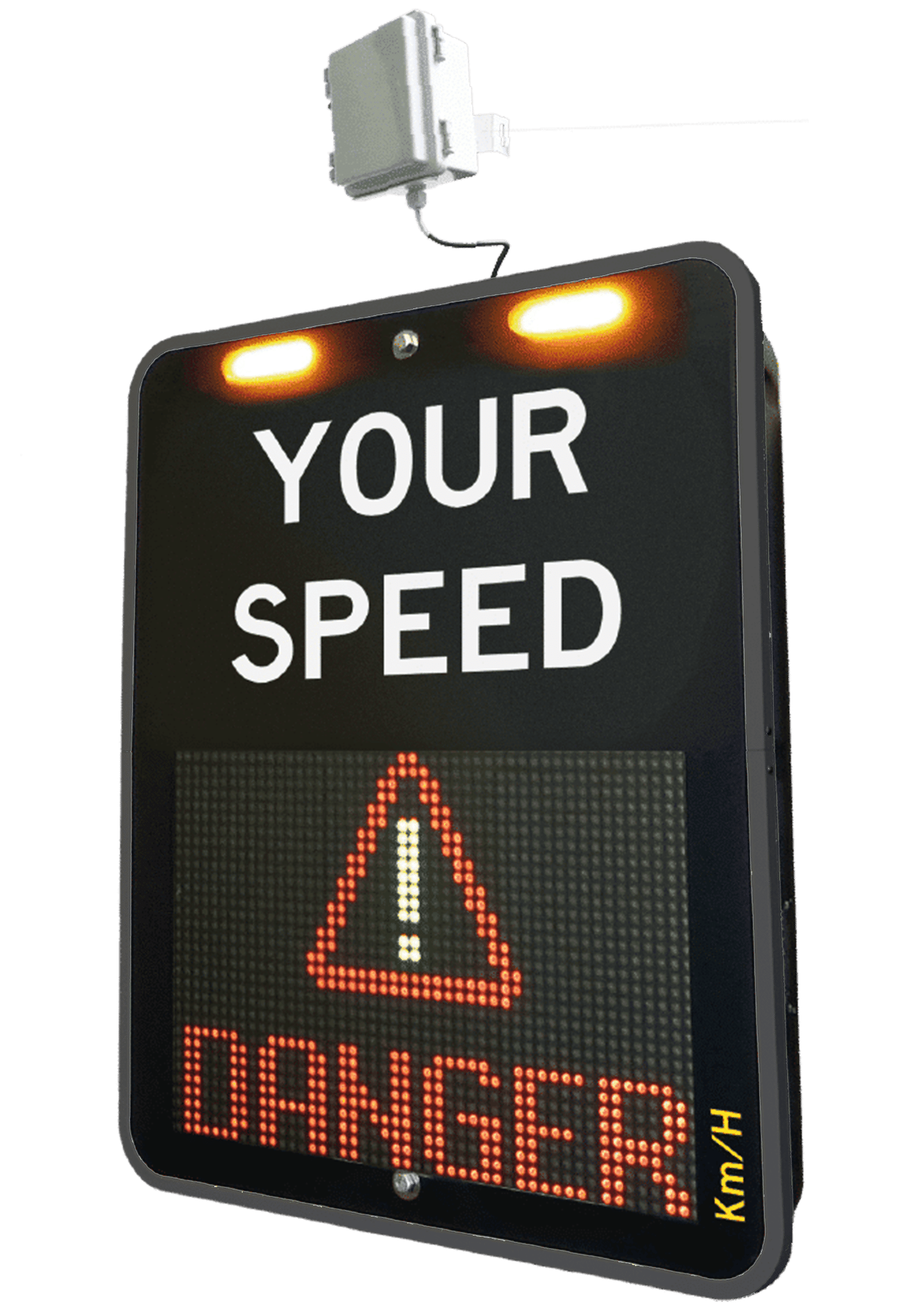

Kamelion-12.5 Radar Speed Feedback Sign

The full matrix Kamelion-12.5 radar speed feedback sign offers so many advantages over conventional speed displays. The screen of this traffic sign allows you to display 320 mm (12.5″) digits in green, yellow or red which improves drivers’ perception reaction time. An RGB full matrix screen displays preprogrammed or programmable pictograms, emoji or text messages that interact positively with drivers. Two built-in RRFBs can be set if needed to alert when excessive overspeeding is reached. These three elements make the Kamelion one of the most efficient speed reduction tools on the market and a great option to achieve Vision Zero.

Kamelion-12.5 Speed Radar Display Sign - Smart sign - Traffic-Innovation
Kamelion-12.5 Speed Radar Display Sign - Variable message sign - Traffic-Innovation

The Kamelion-12.5 is a 7-colors, full-matrix speed display sign. With its 320 x 480 mm screen, it is possible to display digits with a height of 318 mm (12.5″). The specially designed educational radar allows the configuration of the speed display sign. More than 10 preprogrammed Kam-Smart pictograms are available depending on the displayed speed. In addition, the radar allows data collection and RRFB activation on the panel, for excessive speeds.

Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse  - Trafic Innovation

KAM-SMART
Educational Speed Display

The KAM-SMART function makes configuration fast and easy. A digital screen is integrated into the radar, so the user car selects speed ranges pictograms data collection and strobe activation. The pictograms and color speed display create an educational interaction with the road user. Turning on a speed display has never been easier if necessary the KAM-TOOL software allows you to customize the pictograms and define the speed ranges according to a schedule.

Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse  - Trafic Innovation

FEATURES OF THE KAMELION-12.5 RADAR SPEED FEEDBACK SIGN

ADJUSTABLE STAND-ALONE RADAR

Allows a perfect orientation of the radar with the traffic flow, increasing accuracy of data collection. With the screen turned off, it becomes a spy-mode traffic analyzer. Can collect traffic data while displaying speeds or messages.

CONTROL MENU ON THE RADAR

Allows you to quickly program speeds, pictograms, RRFBs and data collection. (Also programmable via Bluetooth)

TWO BUILT-IN SUPER POWERFUL STROBES

Programmable if needed for excessive speeding drivers. Blink alternately to simulate an emergency light and encourage drivers to slow down. Compliant with the MUTCD standard.

FULL 320 x 480 mm (12.5″ x 19″) DISPLAY MATRIX

Displays digits with a height of 320 mm (12.5ʺ). Readable at a minimum distance of 150 m (493ʹ). RGB screen that displays 7 colors.
Digit color varies according to speed.
Screen text messages and pictograms are tricolor according to the displayed speed limit.
The Kamelion-12.5 can alternate between displaying speed and interactive messages. More than 10 preprogrammed pictograms. Text up to 4 lines of 12 characters of 70 mm (2 3/4
ʺ).

ANTI-GLARE POLYCARBONATE WINDOW

Improves visibility in addition to being unbreakable

PHOTOCELL

Adjusts brightness automatically

Kamelion-12.5 Speed Radar Display Sign - Smart city- Traffic-Innovation

TECHNICAL SPECIFICATIONS OF THE KAMELION-12.5 RADAR SPEED FEEDBACK SIGN

Technical specifications of the Kamelion 12.5 speed radar display sign - Traffic Innovation

ELECTRICAL COMPONENTS

Screen Format: 320 x 480 mm (12.5″ x 19″)
Resolution: 32 x 48 pixels
Angularity: 50° x 100°
Colors: RGB (red, blue, green) for 7 colors
Text: Messages and pictograms are tricolor according to the speed limit displayed.
Visibility: more than 300 m (1000′)
Max Power Consumption: 90 Wh (day) – 35 Wh (night)
Voltage In: 10,8 to 15 VDC
Connector: ”Snap-in”, overmolded IP67, 10 mm OD
Flasher: 2 x 18 Watts amber flashers
Communication: USB or Bluetooth, range of 50 m (160′)
Operational Temperature: -40 to +65°C (-40 to +149°F)
Power Sources: Batteries located in the solar power unit (Lithium)

MATERIALS

Housing: UV-treated polyethylene (PEHD)
Front Panel: Anti-reflection polycarbonate 5 mm (.188″)
Environmental Protection: IP65
Weight: 12 kg (26 lb)



Product number Description Box : Dimension – Weight HSS Code
Assembly Kit
#37648 KAM-12,5 Driver Feedback Sign with 50W solar power unit 37 x 28 x 11 po – 35 lb + 37 x 28 x 11 po – 30 lb 8530.90
#38187 KAM-12,5 Driver Feedback Sign with 50W solar power unit and CLOUD modem 37 x 28 x 11 po – 35 lb + 37 x 28 x 11 po – 30 lb 8530.90
#37758 KAM-12,5 Driver Feedback Sign with AC/DC Power Converter 37 x 28 x 11 po – 45 lb 8530.90
#38188 KAM-12,5 Driver Feedback Sign with AC/DC Power Converter and CLOUD modem 37 x 28 x 11 po – 45 lb 8530.90
Options
#37319 Access and annual fees to the Navigate Traffic Cloud™ web platform Included in kit box N/A

Included in kit : Installation hardware for streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
