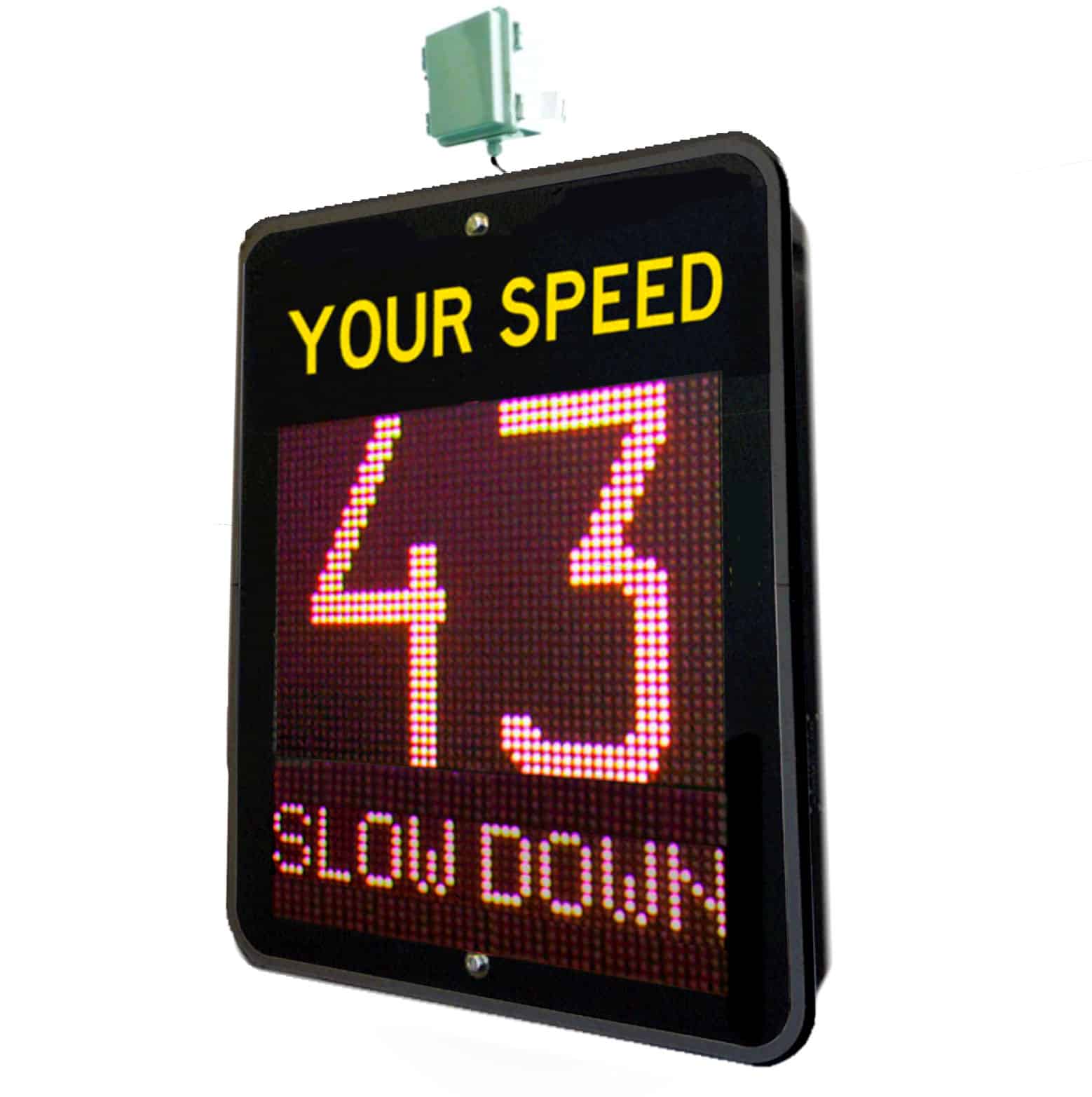

Kamelion Texto Radar Speed Feedback Sign

The Kamelion-Texto speed radar display sign offers so many advantages over conventional speed displays. Its screen allows you to display 320 mm (12.5″) 3 digits in green, yellow or red, which improves drivers’ perception reaction time. The full matrix text box of the traffic sign will display preprogrammed or programmable pictograms, emoji or text messages that interact positively with drivers. Two built-in RRFBs can be set if needed to alert when excessive overspeeding is reached. These three elements make the Kamelion-Texto educational sign one of the most efficient speed reduction tools on the market.

Kamelion Texto Speed Radar Display Sign -  Smart sign- Traffic Innovation
Kamelion Texto Speed Radar Display Sign - Variable message sign - Traffic Innovation

FEATURES OF THE KAMELION TEXTO RADAR SPEED FEEDBACK SIGN

ADJUSTABLE STAND-ALONE RADAR

Allows a perfect orientation of the radar with the traffic flow, increasing accuracy of data collection. With the screen turned off, it becomes a spy-mode traffic analyzer. cAN collect traffic data while displaying speeds or messages.

CONTROL MENU ON THE RADAR

Allows you to quickly program speeds, pictograms, RRFBs and data collection. (Also programmable via Bluetooth)

TWO BUILT-IN SUPER POWERFUL STROBES

Programmable if needed for excessive speeding drivers. Blink alternately to simulate an emergency light and encourage drivers to slow down. Compliant with the MUTCD standard.

320 x 480 mm (12.5″ x 19″) FULL-MATRIX “SPEED” DISPLAY

Displays digits with a height of 320 mm (12.5″).
Readable at a maximum distance of 150 meters. The color of the figures varies according to the speed. Displays up to 3 digits.

160 x 480 mm (6.25″ x 19″) FULL-MATRIX “TEXT MESSAGE” DISPLAY

Displays text with a height of 160 mm.
Readable at a maximum distance of 75 m (246ʹ) RGB screen that displays 7 colors.

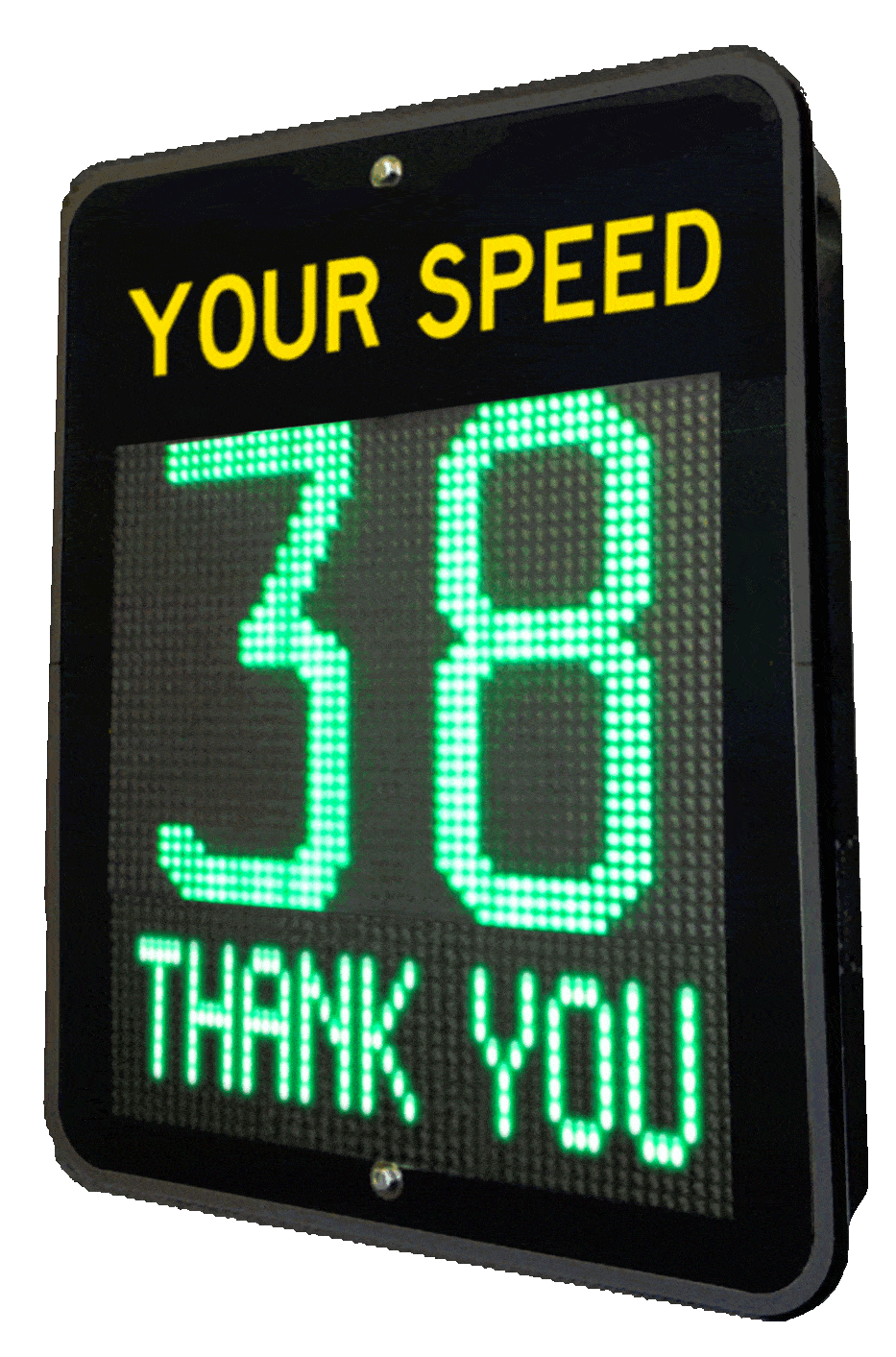

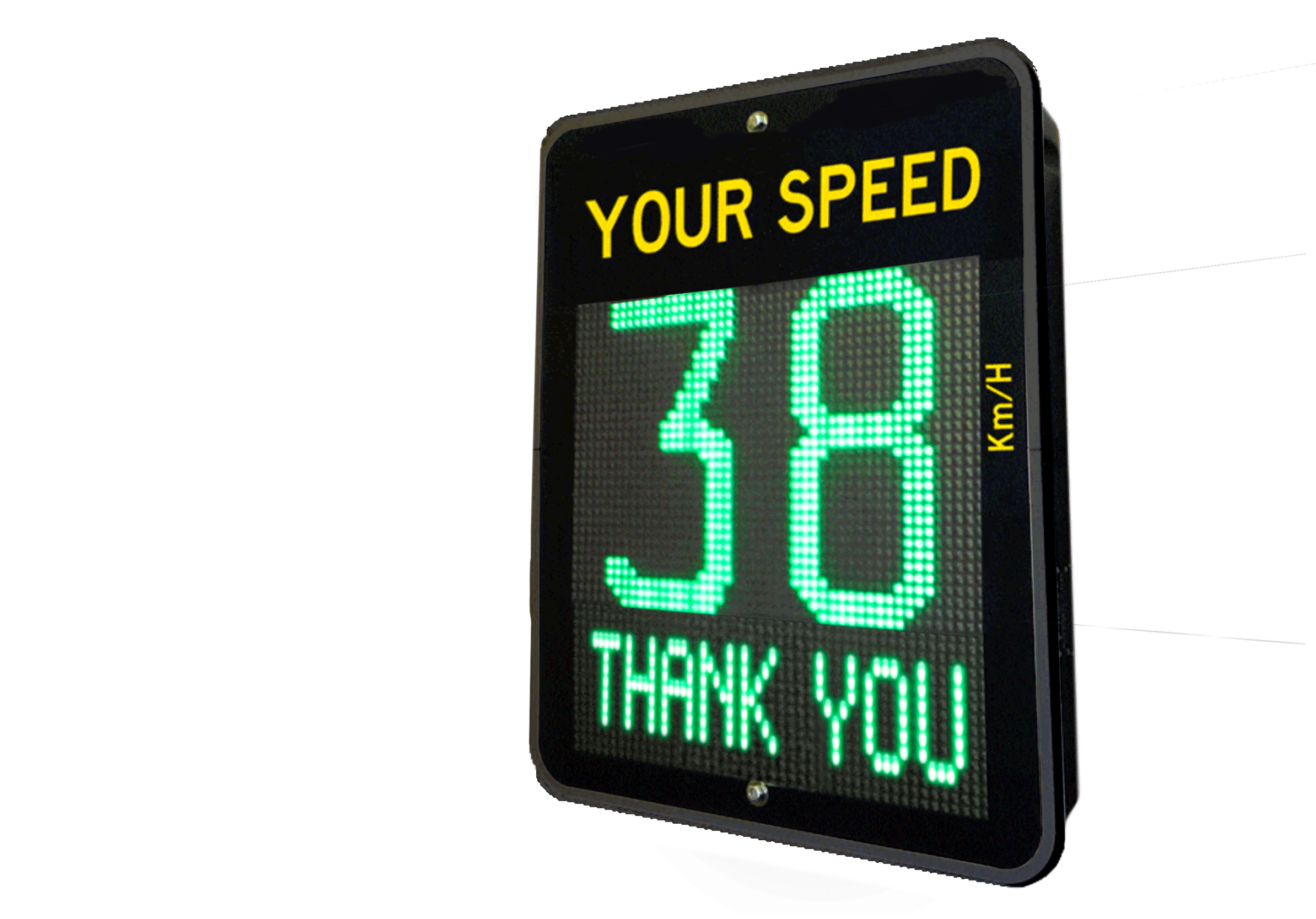

The message varies depending on the speed.
Screen text messages and pictograms are tricolor according to the displayed speed limit.
More than 10 preprogrammed pictograms. Text up to 2 lines of 12 characters of 70 mm (2 3/4
).

ANTI-GLARE POLYCARBONATE WINDOW

Improves visibility in addition to being unbreakable.

PHOTOCELL

Adjusts brightness automatically.

Kamelion Texto Speed Radar Display Sign -  Smart city - Traffic Innovation
Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse  - Trafic Innovation

KAM-SMART
Educational Speed Display

The KAM-SMART function makes configuration fast and easy. A digital screen is integrated into the radar, so the user car selects speed ranges pictograms data collection and strobe activation. The pictograms and color speed display create an educational interaction with the road user. Turning on a speed display has never been easier if necessary the KAM-TOOL software allows you to customize the pictograms and define the speed ranges according to a schedule.

Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse  - Trafic Innovation

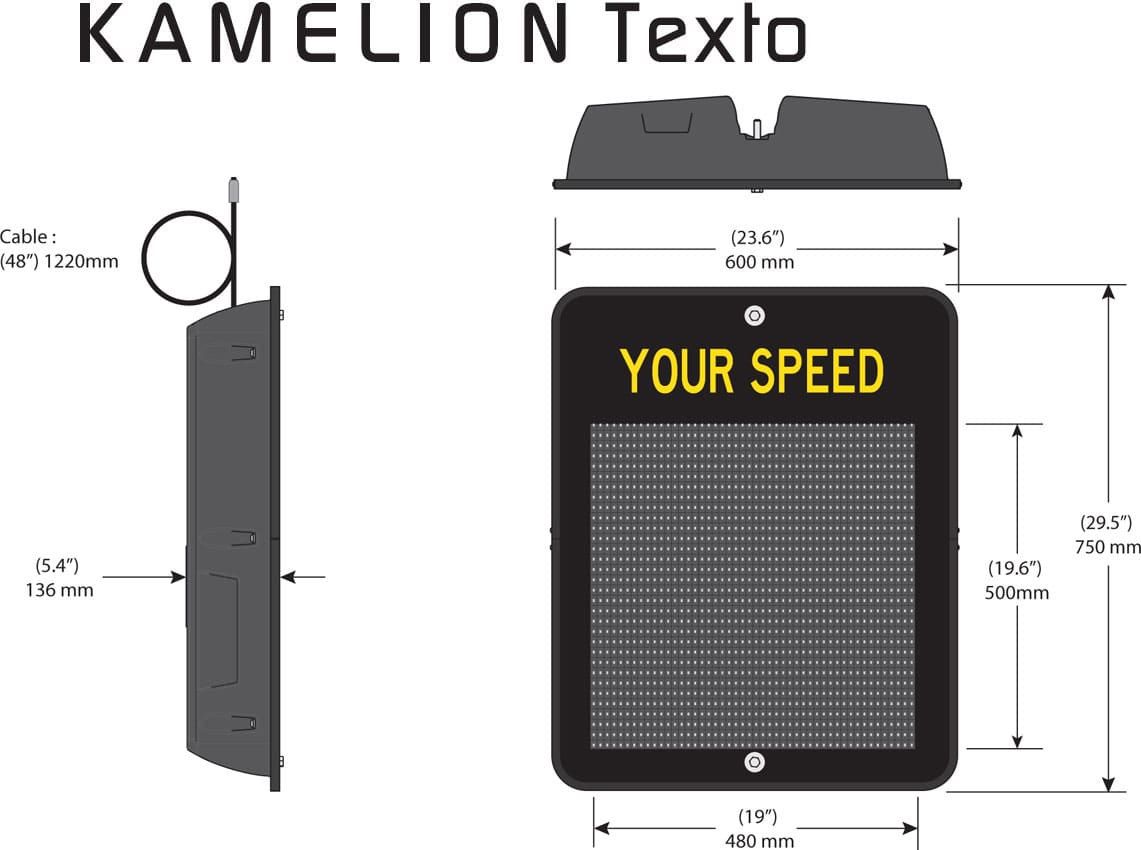

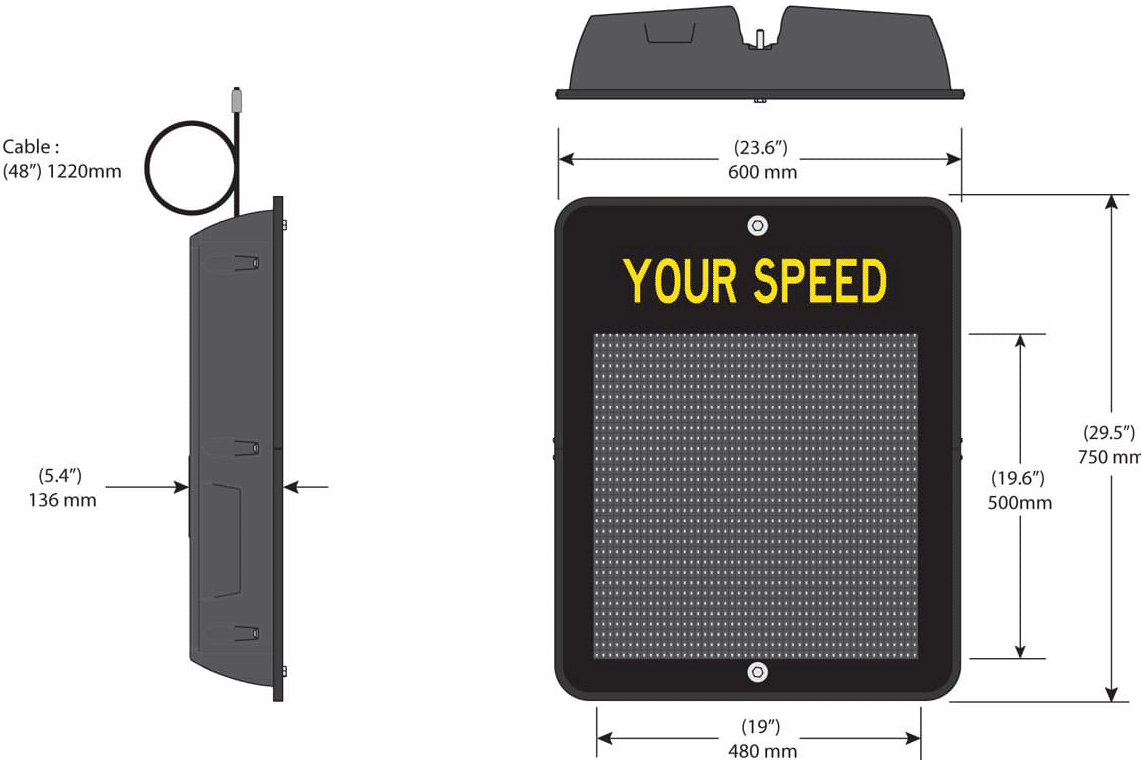

TECHNICAL SPECIFICATIONS OF THE KAMELION TEXTO RADAR SPEED FEEDBACK SIGN

Technical specifications of the speed radar display sign Kamelion Texto - Traffic Innovation

ELECTRICAL COMPONENTS

Screen Format: 320 x 480 mm (12.5″ x 19″) – Digits
160 x 480 mm (6.25″ x 19″) – Text
Resolution: 32 x 48 pixels – Digits
16 x 48 pixels – Text
Angularity: 50° x 100°
Colors: RGB (red, blue, green) for 7 colors
Text: Messages and pictograms are tricolor according to the speed limit displayed
Visibility: more than 300 m (1000′)
Max. Power Consumption: 90 Wh (day) – 35 Wh (night)
Voltage In: 10.8 to 15 VDC
Connector: ”Snap-in”, overmolded IP67, 10 mm OD
Flasher: 2 x 18 W amber flashers
Communication: USB or Bluetooth, range of 50 m (160′)
Operational Temperature: -40 to +65°C (-40 to +149°F)
Power Sources: Batteries located in the solar power unit (Lithium) superior , 10 years of  useful life

(Optional AGM batteries , in option only)

MATERIALS

Housing: UV-treated polyethylene (PEHD)
Front Panel: Anti-reflection polycarbonate 5 mm (.188″)
Water Resistance: IP65
Weight: 12 kg (26 lb)

Product number Description Box : Dimension – Weight HSS Code
Assembly Kit
#37655 KAM-TXT Driver Feedback Sign – with text zone, 100W solar power unit 48 x 37 x 12 po – 50 lb + 37 x 28 x 11 – 50 lb 8530.90
#38193 KAM-TXT Driver Feedback Sign – with text zone, 100W solar power unit. with CLOUD modem 48 x 37 x 12 po – 50 lb + 37 x 28 x 11 – 50 lb 8530.90
#37762 KAM-TXT Driver Feedback Sign – with text zone, AC/DC power converter 48 x 37 x 12 po – 50 lb + 37 x 28 x 11 – 50 lb 8530.90
#38194 KAM-TXT Driver Feedback Sign – with text zone, AC/DC power converter. with CLOUD modem 48 x 37 x 12 po – 50 lb + 37 x 28 x 11 – 50 lb 8530.90
Activation Options
#37319 Access and annual fees to the Navigate Traffic Cloud™ web platform Included in kit box N/A

Included in kit : Installation hardware for streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
