Thin-8FB 8ʺ Thin Red Flashing Beacon

SIGN RENFORCEMENT ON EXISTING OR NE W INSTALLATION
The leading cause of roadway accidents in North America is distracted driving. The addition of the 8ʺ Smart Flashing Beacon will help prevent accidents in critical areas such as intersections, crosswalks and school zones by attracting attention to traffic signs. With high-intensity LED lights, the single flasher beacon catches the driver’s attention and ensures the visibility of signs, thus improving road safety.

8ʺ Smart Flashing Beacon - LED Traffic sign - THIN - Traffic Innovation

REINFORCES THE SIGN IN CRITICAL ZONES

SOLAR POWER SUPPLY

INCREASES ROAD USERS' SAFETY

LOW INSTALLATION COSTS

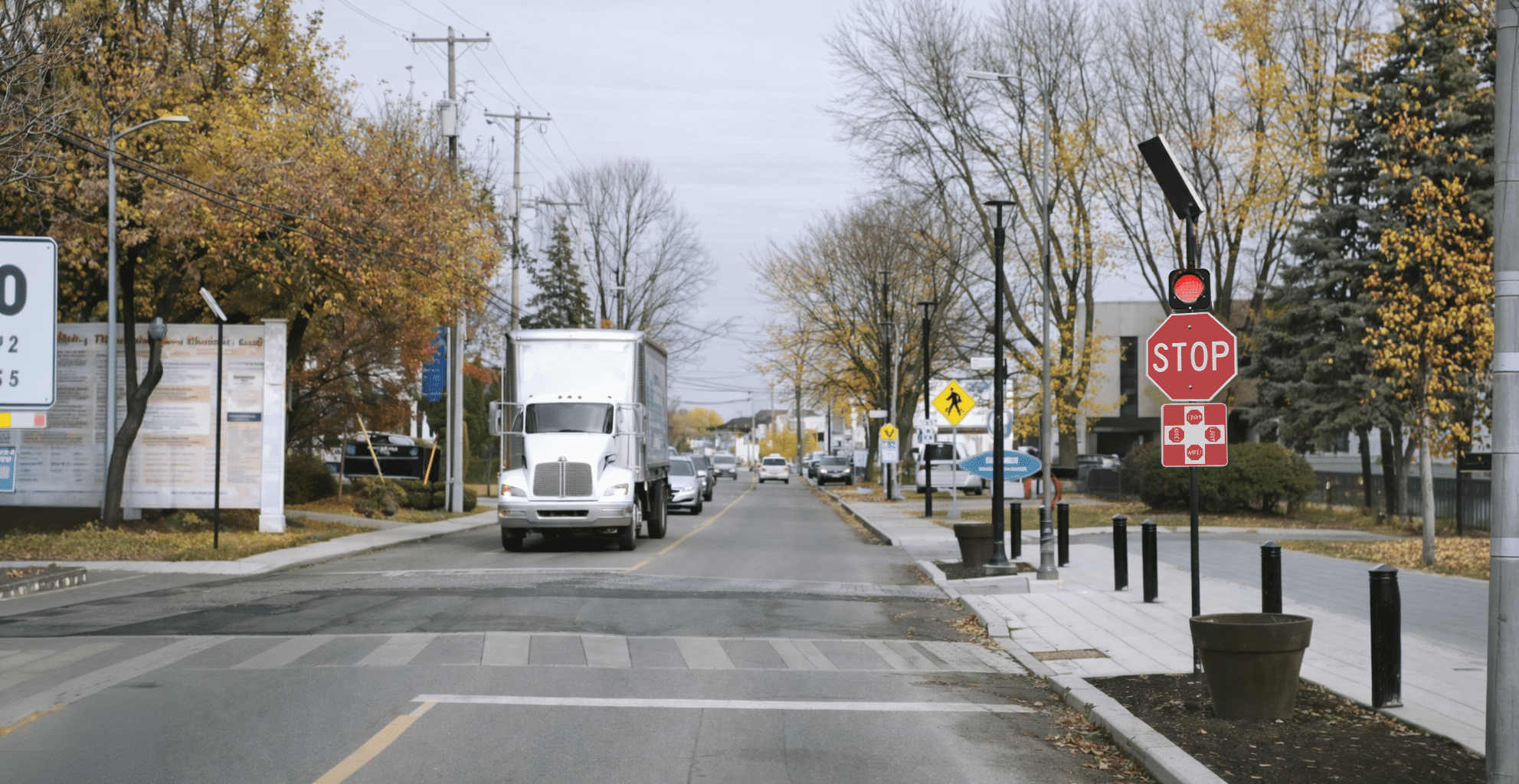

8ʺ Smart Flashing Beacon - Electronic Traffic Sign - THIN - Traffic Innovation

Features of the 8ʺ THIN RED FLASHING BEACON

8ʺ Smart Flashing Beacon - Smart city - Traffic Innovation

Aluminum
Light and resistant. Installs like a standard
traffic sign.

Powerful LED
Integrated into the sign and protected by polycarbonate lens.

Controller
Photocell, flashing patterns, wireless communication and scheduled activation.

Reflective
High intensity yellow sheeting or black background.

Snap-in Connector
Small enough to be hidden inside pole.
IP 67 protection.

8ʺ Smart Flashing Beacon - Traffic Calming - Traffic Innovation

SOLAR POWER UNIT (ALL-IN-ONE & PLUG-AND-PLAY)

8ʺ Smart Flashing Beacon - Flashing Beacon sign - Traffic Innovation

Monocrystalline Cells
Higher-efficiency solar panel to optimize size.

LifePo4 lithium Battery
Light and slim. 10-year life expectancy. Maintenance free.

MPPT Charger
Increases charging efficiency by at least 20% compared to PWM.

Universal Mounting Bracket
Top or side of pole installation.

LED Status Indicator

Snap-in Connector

8ʺ Smart Flashing Beacon - Led Parking sign - Traffic Innovation

Activation Options

REINFORCES THE SIGN IN CRITICAL ZONES

Mounting Options

SINGLE

SINGLE BACK-TO-BACK

DUAL VERTICAL

DUAL HORIZONTAL

TECHNICAL SPECIFICATIONS OF THE 8ʺ THIN RED FLASHING BEACON

Solar Power Unit (All-in-one)

Monocrystalline Solar Panel: 30 W
LifePo4 Battery: 12.8 V – 14 Ah
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6ʺ, IP67
Operating Temperature: -40 to +74°C (-40 to +165°F)
Weight: 7.7 kg (17 lb)

Flashing Beacon

Beacon size: 200 mm (8ʺ)
Standard: ITE VTCSH-STD 2005, EN 12352 L8M Class
Color: Red 626 nm
Life Expectancy: 100,000 hours
Luminous Intensity: 650 cd day – 200 cd night
Auto-dimming: Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max Power @ 12 V: 8 W
Wireless Communication: Encrypted 902 MHz, up to 100 m (300ʹ)
Connector: 10 mm OD, Male, 6ʺ, IP67
Flash Patterns: 0.1 – 0.2 – 0.5 sec, tri-flash or WW+S
Flash Rate: 60 per minute
Activation: 24/7, night only, calendar, on-demand
Default Setting: 0.1 sec, 24/7
Back Plate: Aluminum 5052-H38, 2 mm (.08ʺ)
Sheeting (Black): 3MTM ScotchcalTM
Reflective Sheeting (Yellow): 3MTM Prismatic High intensity Type IV
Visor: Aluminum, black painted textured (yellow exterior also offered)
Lens: UV-resistant transparent polycarbonate
Waterproof Rating: IP65
Operating Temperature: -40 to +50°C (-40 to +131°F)
Weight: 1.4 kg (3 lb)

Product Number	Description	Box : Dimenson – Weight	HSS Code
Assembly Kit
#37705	Single Flashing Beacon, red, black background, 30 W solar power unit	18 x 28 x 14 in – 21 lbs	8530.90
#37707	Dual Flashing Beacon, red, black background, 30 W solar power unit	18 x 32 x 14 in – 32 lbs	8530.90
Activation Options
#38129	Software Kit for Schedule, configuration and pairing (USB Dongle + Software)	Included in kit box	N/A
#36463	Wireless and battery-free Remote Control	Included in kit box	N/A
#36287	Wireless and battery free Push Button	Included in kit box	N/A
#36267	Wireless and battery free Push Button on a Flexible Post	8 x 8 x 40 in – 8 lb	8530.80
#36900	Vehicle sensor activation for 2-3/8” pole	Kit box (+ 2 lb)	N/A

Included in kit: Installation hardware for 2’’ Telespar post, 2-3/8‘’ round pole, U-Post or streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
