Kamelion VMS Variable Message Sign

Advanced electronic signage
The Kamelion-VMS variable message sign is a small variable message sign that can meet several needs. It can be used to communicate information to citizens. It can display messages according to the time and day of the week. Its 24″ x 30″ format makes the Kamelion the ideal tool for improving standard or intermittent road signage. Thanks to its RGB display, the Kamelion-VMS can display up to 7 colors in order to improve the perception and reaction time of drivers. A software is included to allow easy message customization. These three elements make the Kamelion educational sign one of the most powerful speed reduction tools on the market.

Variable Message sign Kamelion VMS - Smart sign - Traffic Innovation

HIGH INTENSITY LEDs

RGB DISPLAY

CUSTOMIZABLE PICTOGRAMS AND TEXTS

Speed display signs line Kamelion - Variable message sign - Traffic Innovation

WHY CHOOSE THE KAMELION VMS VARIABLE MESSAGE SIGN?

CITIZEN COMMUNICATION

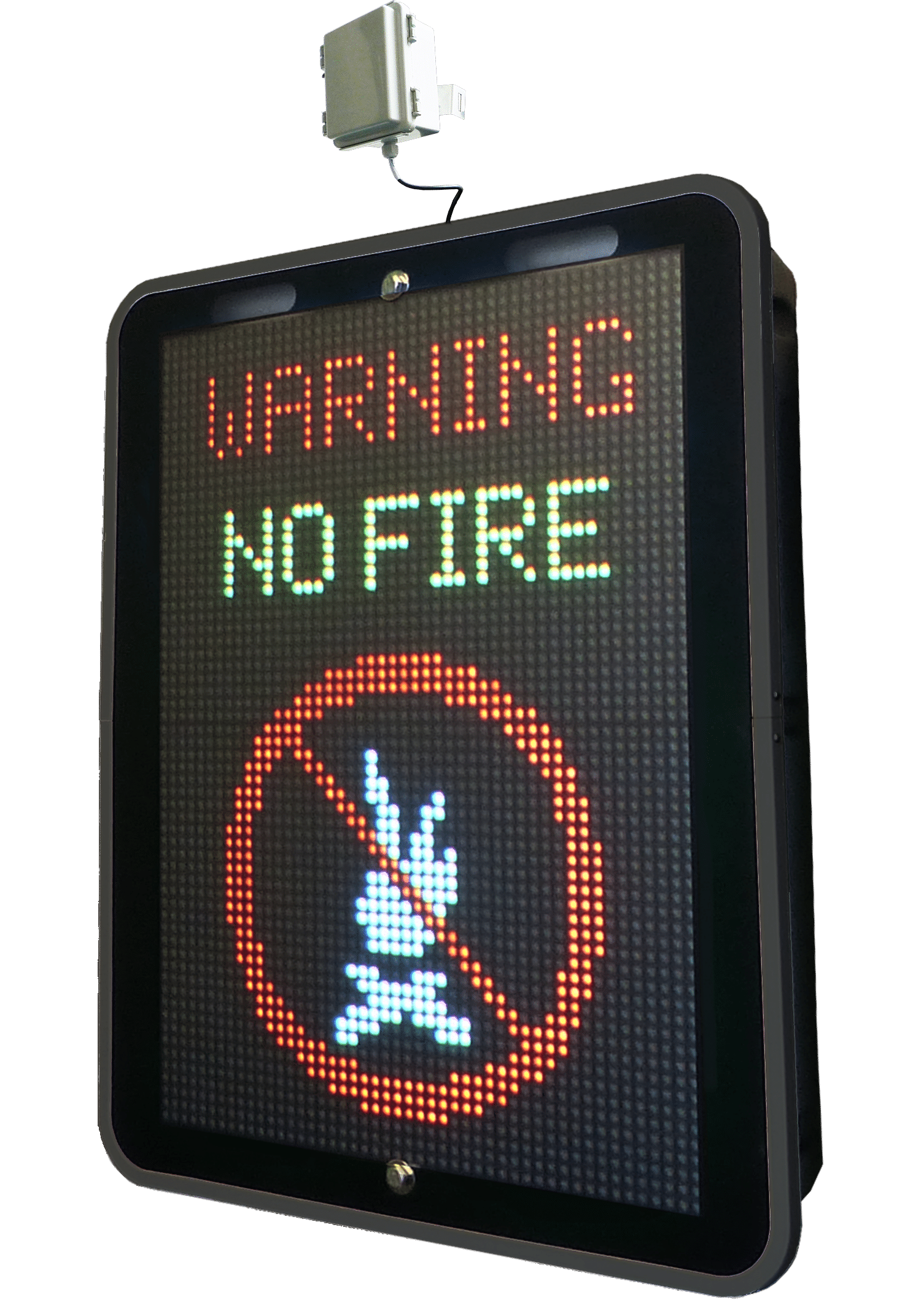

The perfect traffic sign to effectively communicates with citizens. Whether it is to promote municipal activities or increase awareness during emergency situations such as boil water advisory, fire ban or evacuation, the variable message sign is an effective and dynamic means of communication. Thanks to the software specially designed on the educational radar, it is easy to edit any multicolored message or image and then send it to the panel via Bluetooth.

SPEED DISPLAY

By combining the variable message panel with a specially designed Doppler radar, the Kamelion becomes a full-matrix 7-color speed display. With its 48 x 64 cm (23.6ʺ x 29.5ʺ) screen, it is possible to display digits with a height of 38 cm (15”) while leaving enough space for a text box. The size of the screen enhances the visibility and efficiency of the sign, and allows the use of the sign on roads where the speed is greater than 60 km/h (37 mph). The specially designed educational radar offers many speed display configurations. About 20 preprogrammed pictograms are available depending on the displayed speed. In addition, the radar allows the collection of data and the activation of two rectangular rapid flash lights (RRFBs) on the panel, for excessive speeds.

FEATURES OF THE KAMELION VMS VARIABLE MESSAGE SIGN

ADJUSTABLE STAND-ALONE RADAR

Allows a perfect orientation of the radar with the traffic flow, increasing accuracy of data collection. With the screen turned off, it becomes a spy-mode traffic analyzer. Can collect traffic data while displaying speeds or messages.

SPEED DISPLAY

The addition of the radar also makes it possible to use the VMS as a speed display and take advantage of the characteristics of Kamelion-15.

INTERNAL CALENDAR

The Kamelion VMS is equipped with an internal calendar that allows you to toggle the message depending on the time or day. This feature allows to improve the intermittent signal such as speed and variable bans depending on the time and day of the week.

FULL 640 X 480 mm (25ʺ X 19ʺ) DISPLAY MATRIX

Readable at a maximum distance of 200 m (656ʹ). RGB screen that displays 7 colors.
Can scroll more than 100 messages continuously. Pictogram or customizable message with software. Text up to 8 lines of 12 characters of 70 mm (2 3/4ʺ)

SPEED DISPLAY

Adding a radar also allows you to use the PMV as a speed display and thus take advantage of the characteristics of the Kamelion-15 speed display. Screen text messages and pictograms are tricolor according to the displayed speed limit.

PICTOGRAM INCLUDED

More than 40 TOME V & MUTCD compliant road signs and more than 10 warning messages are included on the software.

ANTI-GLARE POLYCARBONATE WINDOW

Improves visibility in addition to being unbreakable.

PHOTOCELL

Adjusts brightness automatically.

Variable Message sign Kamelion VMS - Smart city - Traffic Innovation

TECHNICAL SPECIFICATIONS OF the
KAMELION VMS VARIABLE MESSAGE SIGN

MATERIALS

Housing: UV-treated polyethylene (PEHD)
Front Panel: Anti-reflective polycarbonate 5 mm (.188ʺ)
Environmental Protection: IP65
Weight: 12 kg (26 lb)

ELECTRICAL COMPONENTS

Screen Format: 640 x 480 mm (25ʺ x 19ʺ)
Resolution: 64 x 48 pixels
Angularity: 50° x 100°
Visibility: more than 300 m (1000ʹ)
Colors RGB: (red, blue, green) for 7 colors
Text: Messages and pictograms are tricolor according to the speed limit displayed
Max. Power Consumption: 180 Wh (day) – 70 Wh (night)
Voltage In: 10.8 to 15 VDC
Flasher: 2 x 18 Watts amber flashers
Connector: “Snap-in”, overmolded IP67, 10 mm OD
Communication: USB or Bluetooth, range of 50 m (160ʹ)
Operational Temperature: -40 to +65°C (-40 to +149°F)
Power Sources: Batteries located in the solar power unit (Lithium)
(Optional AGM batteries into the display unit)

Product number	Description	Box : Dimension – Weight	HSS Code
Assembly Kit
#37395	Electric Variable Message Sign	37 x 28 x 11 in – 32 lbs + 12 x 16 x 12 in – 40 lbs	8530.90
#37393	Electric Variable Message Sign wwith Radar	37 x 28 x 11 in – 35 lbs + 12 x 16 x 12 in – 40 lbs	8530.90

Included in kit : Two (2) years Limited Warranty against defects in workmanship and materials.
