Carvel-GGSA Carvel Ground Sleeve Anchor
CARVEL SLEEVE

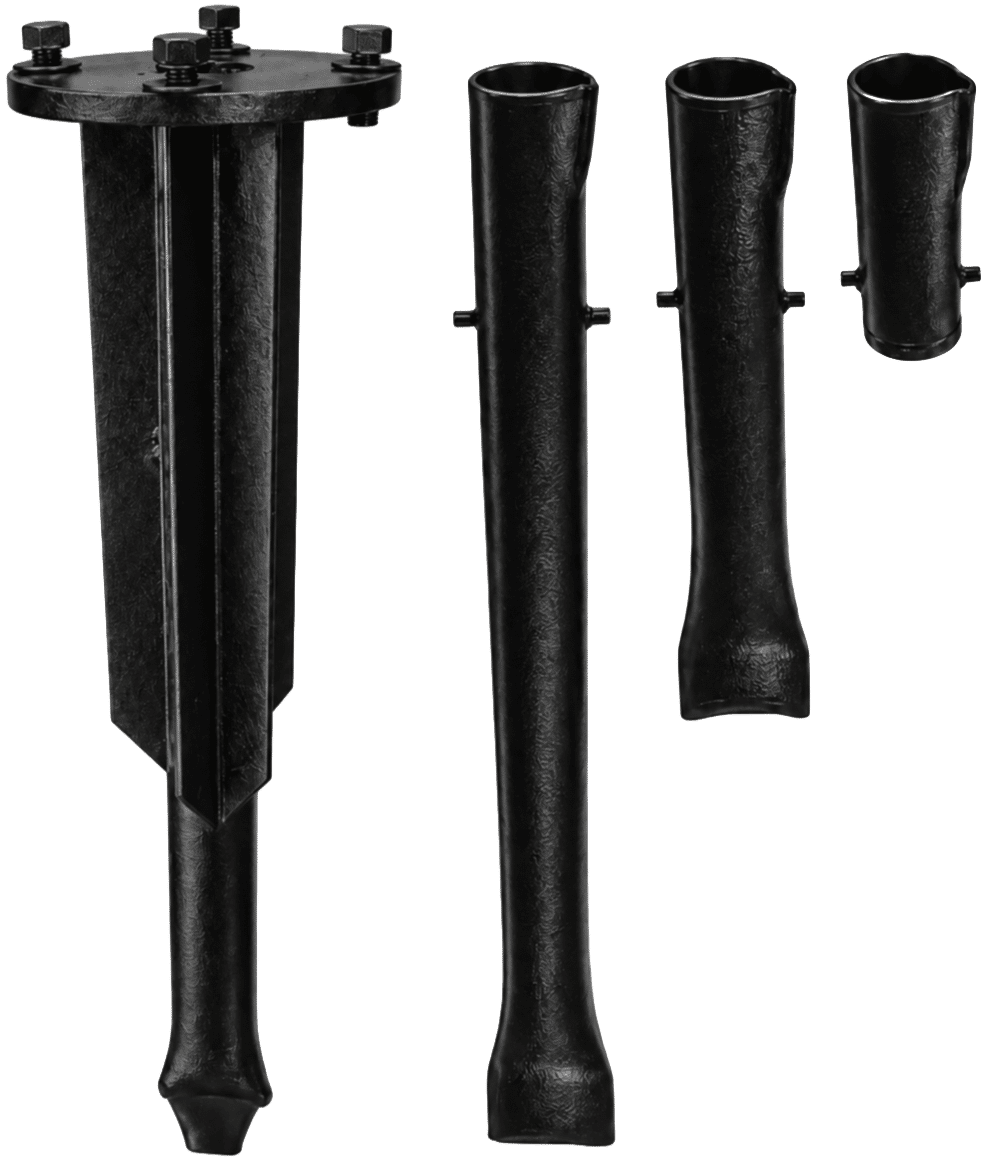

Simple, fast and efficient, the Carvel buried sleeve anchor system is a proven system that makes it easy to install and tightly secure 60 mm (dia. 2.375ʺ) round signposts, bollards, delineators, and other street furniture.
Fully buried 13 mm (.5″) deep under the ground, the Carvel sleeve is not an obstacle and is therefore never damaged in the event of an impact with the fixed equipment, in addition to facilitating snow removal operations once the equipment is removed. Thanks to the notch specially designed to accommodate the matching nail, the material can only be released using the adapted extractor. Simply effective, the carvelle sleeve anchoring system is as safe as it is affordable.
STABLE, STURDY AND DURABLE
SIMPLIFIES MAINTENANCE OF FIXED EQUIPMENT
COMPATIBLE WITH ANY GROUND TYPES
PRODUCT OPTIONS
Track Spike #30780
Track Spike & Sleeve Adapter Extractor #30924
Anchor Stabilizer for Soft Ground #31582
Sleeve Anchor Cap #32534
Adapter for Kalifix Non-Weakened Sleeves #34601
Jackhammer Adapter for Sleeve Anchor #31187
TECHNICAL SPECIFICATIONS OF THE CARVEL SLEEVE ANCHOR SYSTEM
MATERIALS
Steel Raw or Galvanized Steel
APPLICATIONS
200 mm: Concrete, Asphalt (over 2″)
550 mm: Asphalt (under 2″)
900 mm: Soft Grounds (Grass, Soil, etc.)
900 mm Rocket Style: Loose Grounds
DIMENSIONS
I.D.: 60 mm (2.375″)
O.D.: 73 mm (2.875″)
Depth: (see product nº)
| Product number | Description | Dimension – Weight | HSS Code |
|---|---|---|---|
| Assembly kit | |||
| #34007 | Steel Sleeve Anchor 200 mm | 200 mm / 7.87 in – 3.8 lbs / 1.72 kg | N/A |
| #36335 | Steel Sleeve Anchor 550 mm | 550 mm / 21.65 in – 10 lbs / 4.54 kg | N/A |
| #36818 | Steel Sleeve Anchor 900 mm | 900 mm / 35.43 in – 17 lbs / 7.71 kg | N/A |
| #34600 | Rocket Anchor 900mm for 4” signpost | 900 mm / 35.43 in – 27 lbs / 12.25 kg | N/A |
| Options | |||
| #30708 | Track spike .375 X 3″ steel | Call for info | N/A |
| #30924 | Track spike & Sleeve Adapter Extractor | Call for info | N/A |
| #31582 | Anchor Stabilizer for Soft Ground | Call for info | N/A |
| #32534 | Sleeve Anchor Cap | Call for info | N/A |
| #31187 | Jackhammer Adapter for Sleeve Anchor | Call for info | N/A |
