Kamelion-18 Radar Speed Feedback and Message Sign

Speed displays are an effective tool to influence driver behavior for the better. With its seven-color full matrix screen, the Kamelion 18 communicates road users in an educational way. This traffic calming device will have an immediate and lasting impact on excessive speeds, and it can also serve to improve several road safety issues.
Icône d'outil pédagogique - Trafic Innovation

EDUCATIONAL TOOL

Icône de collecte de données - Trafic Innovation

DATA COLLECTION

Icone de réduction de vitesse - Trafic Innovation

REDUCES EXCESSIVE SPEEDS BY UP TO 30%

Afficheur de vitesse Kamelion-15 - Radar pédagogique - Trafic Innovation
Afficheur de vitesse Kamelion-15 - Indicateur de vitesse - Trafic Innovation

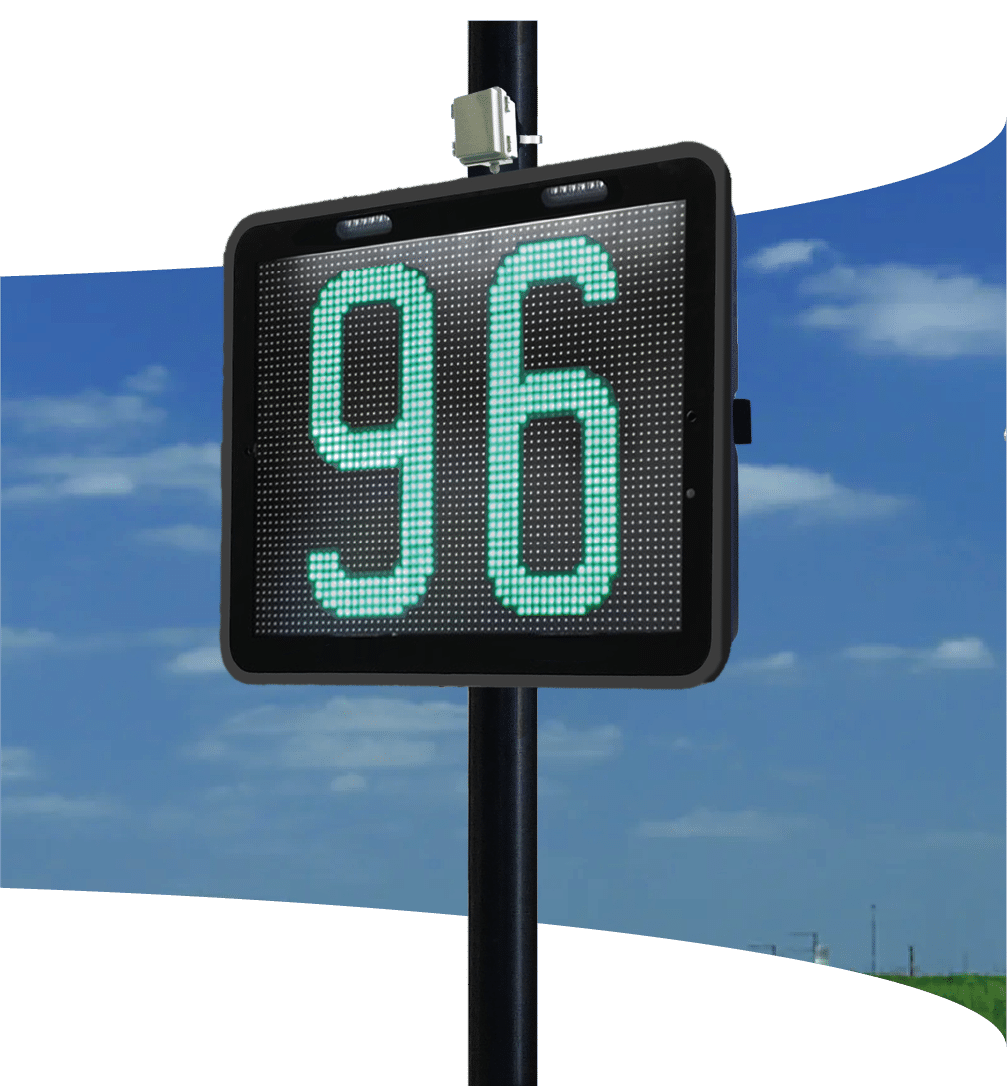

KAMELION-18 RADAR SPEED FEEDBACK AND MESSAGE SIGN

The Kamelion-18 is a 7-colors, full-matrix speed display sign with 640 x 480 mm horizontal screen and 460 mm (18″) digits height. The specially designed radar allows the easy configuration of the speed display sign. More than 10 preprogrammed pictograms are available depending on the displayed speed. In addition, the radar allows data collection and RRFB activation on the panel, for excessive speeds.

Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse - Trafic Innovation

KAM-SMART
Educational Speed Display

The KAM-SMART function makes configuration fast and easy. A digital screen is integrated into the radar, so the user can selects speed ranges, pictograms, data collection and strobe activation. The pictograms ans color speed display create an educational interaction with the road user. Turning on a speed display has never been easier. If necessary, the KAM-TOOL software allows you to customize the pictograms and define the speed ranges according to a schedule.

Afficheur de vitesse Kamélion-15 - Panneau afficheur de vitesse - Trafic Innovation

VISIBILITY

Afficheur de vitesse Kamelion-15 - Indicateur de vitesse - Trafic Innovation

A long reading time will have a positive impact on the behavior of road users. Higher the speed limit is, higher the digits must be in order to give drivers the time necessary to read messages and adjust their speed.

CLOUD-BASED PLATFORM MANAGEMENT

NAVIGATE TRAFFIC CLOUD MC

A CLOUD-BASED PLATFORM FOR THE ADVANCED REMOTE MANAGEMENT OF ELECTRONIC TRAFFIC SIGNS

You can now set up your electronic signage and collect road traffc information directly online! Access your data, monitor and change the display of your smart signs from your computer, tablet and mobile phone. With the intuitive Navigate Traffic Cloud™ interface, you can locate your equipment on a map and get instant data on volumes by vehicle type and average speed, and compare with allowable limits. More

Afficheur de vitesse Kamelion-15 - Indicateur de vitesse - Trafic Innovation

FEATURES OF THE KAMELION-15 RADAR SPEED FEEDBACK AND MESSAGE SIGN

ADJUSTABLE STAND-ALONE RADAR

Allows a perfect orientation of the radar with the traffic flow, increasing accuracy of data collection. With the screen turned off, it becomes a spy-mode traffic analyzer. Can collect traffic data while displaying speeds or messages.

CONTROL MENU ON THE RADAR

Allows you to quickly program speeds, pictograms, RRFBs and data collection. (Also programmable via Bluetooth)

TWO BUILT-IN SUPER POWERFUL STROBES

Programmable if needed for excessive speeding drivers. Blink alternately to simulate an emergency light and encourage drivers to slow down. Compliant with the MUTCD standard.

FULL MATRIX 640 x 480 mm (25″ x 19″) SPEED DISPLAY

Displays up to 3 digits with a height of 457 mm (18″). Readable at a minimum distance of 200 m (656′). RGB screen which displays 7 colors.
Screen text messages and pictograms are tricolor according to the displayed speed limit.
The color of the numbers varies depending on the speed. 3 possible types of displays.
1- Alternating number and message, centered
2- Number and message simultaneously, message at the top
3- Number and message simultaneously, message below.
More than 10 preprogrammed pictograms.

Pictogram or message customizable with software. Text up to 8 lines of 12 characters of 70 mm

(2 3/4″).

VARIABLE MESSAGE SIGN

As an option, the Kamelion-18 can be enhanced with the VMS software and become a Kamelion-VMS. This option makes it possible to use the Kamelion as a speed display or as a VMS.

ANTI-GLARE POLYCARBONATE WINDOW

Improves visibility in addition to being unbreakable.

PHOTOCELL

Adjusts brightness automatically.

Kamelion-15 Speed Radar Display Sign - Variable Speed Limit Sign - Traffic Innovation
Afficheur de vitesse Kamelion-15 - Indicateur de vitesse - Trafic Innovation
StatExpert software
IN-DEPTH ROAD TRAFFIC ANALYSIS

Radar makes it possible to collect traffic data while displaying speeds. This data makes it possible to analyze road user behavior and evaluate the effectiveness of the solutions in place.

Reports are used to analyze:

– Traffic speeds by time slot
– Speed variation (acceleration/deceleration)
– Classes (4) of vehicles (motorcycle, car, SUV and truck)
– Average speed and 85 percentiles
– Number of vehicles per time slot

A spy mode allows you to save the data without displaying speed. More than 1 million measurements can be recorded. An analytics software is included with the device. Data can be collected via Bluetooth or, optionally, on the Navigate Traffic Cloud™ platform.

TECHNICAL SPECIFICATIONS OF THE KAMELION-18 RADAR SPEED FEEDBACK AND MESSAGE SIGN

Spécifications techniques de l'afficheur de vitesse Kamélion-15 - Trafic Innovation

DISPLAY

Standard: ATC
Screen format : 640 x 480 mm (25 x 19’’)
Resolution : 64 x 48 pixels
Angularity : 50° x 100°
Visibility : 300 m (1000’)
Coulors : RGB (red, blue, green) 7 colors
Text: Messages and pictograms are tricolor according to the speed limit displayed
Max Power Consumption : 180 Wh
Voltage in : 10,8 to 15 VDC
Connector : Snap-in, overmolded IP67, 10 mm OD
Communication : Bluetooth, 50m (160′) range
Strobes : 18 Watts ambers
Photocell : Variable according ambient light
Text: Up to 8 lines of 12 characters of 70 mm (2 3/4’’)
Operating temperature : -40 à +65°C (-40 à +149°F)

radar

Standard: FCC IC
Range : 300 m (1000’) ajustable
Angularity : 12°H x 24°V
Data acquisition : Bidirectional
Precision : +/- 1 Km/H
Communication : Bluetooth, 50 m (160’) range

Housing

Housing : Polyethylene (HDPE) with UV protection
Sign face : 5 mm (.188’’) polycarbonate with antiglare
Environmental Protection : IP65
Weight : 26 lbs (12 kg)
Spécifications techniques de l'afficheur de vitesse Kamélion-15 - Trafic Innovation
Spécifications techniques de l'afficheur de vitesse Kamélion-15 - Trafic Innovation

SOLAR POWER UNIT (ALL-IN-OnE)

Solar Panel: 100 W – monocrystalline
Battery: 12.8 V – 40 Ah – LifePo4
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, male, 6ʺ, IP67
Operating Temperature: -40 to +165ºF (-40 to +74ºC)
Weight: 16 kg (36 lb)
Width (A): 537 mm (21.13ʺ)
Height (B): 1010 mm (39.75ʺ)
Thickness : 30 mm (1,125’’)

More

120-240 V Current converter

HOUSING
Material : Aluminium 2,5 mm
Size: 262 x 182 x 90 mm
Finish: Black painted
Environmental Protection : IP67, NEMA 1,2,4,4X,12,13
Locking : With 8 bolts phillips M4
Weight : 3 kg (6,5 lb)

ELECTRICAL COMPONENTS
Current converter : 88 ~ 264 VAC, 100W
Battery charger: 12V, PWM, 5A
Battery: 12.8V – 9 Ah, Lithium LiFePo4
Connector : 10mm OD, male, 6 po, IP67
Environmental Protection: -25 to +70°C (-13 to +158°F)

Product number Description Box : Dimension – Weight HSS Code
Assembly Kit
#37659 KAM-18 Driver Feedback Sign with 100W solar power unit 48 x 37 x 12 in – 50 lbs + 37 x 28 x 11 in – 35 lbs 8530.90
#38201 KAM-18 Driver Feedback Sign with 100W solar power unit and CLOUD Modem 48 x 37 x 12 in – 50 lbs + 37 x 28 x 11 in – 35 lbs 8530.90
#37766 KAM-18 Driver Feedback Sign with AC/DC Power Converter 37 x 28 x 11 in – 50 lbs 8530.90
#38202 KAM-18 Driver Feedback Sign with AC/DC Power Converter and CLOUD Modem 37 x 28 x 11 in – 50 lbs 8530.90
Activation Options
#37319 Access and annual fees to Navigate Traffic Cloud ™ web platform Included in kit box N/A

Included in kit : Installation hardware for streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
